Floating Design

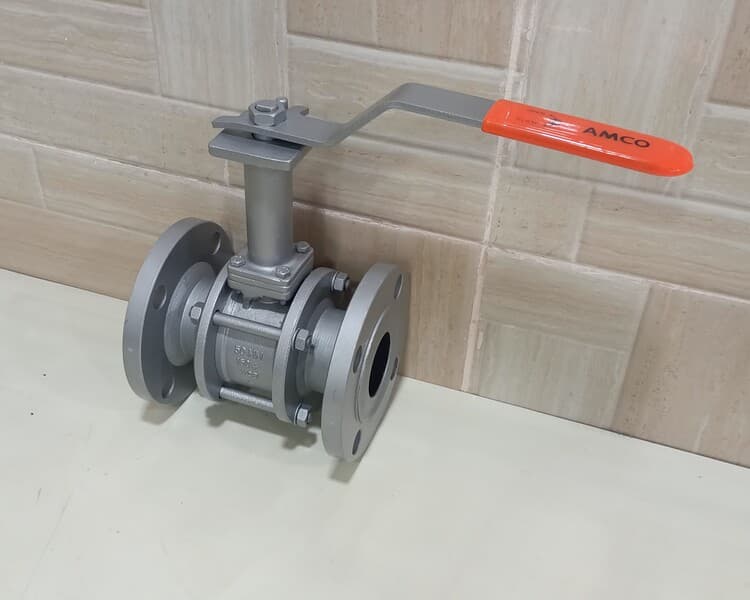

3 Piece Design Flanged ANSI 150#, 300#, 600# & 900#
Size :DN6 - DN300
Material of construction :A105 / F304/L / F316/L / WCB / CF8 / CF8M / CF3 / CF3M
End connection :FLANGED / BW
Pressure rating :150# / 300# / 600# / 900#
Mode of operation :Lever, Actuator
Manufacturing Standard :ISO 17292 / API 6D / API 608
Testing Standard :ISO 5208 / ISO 10497 / API 607

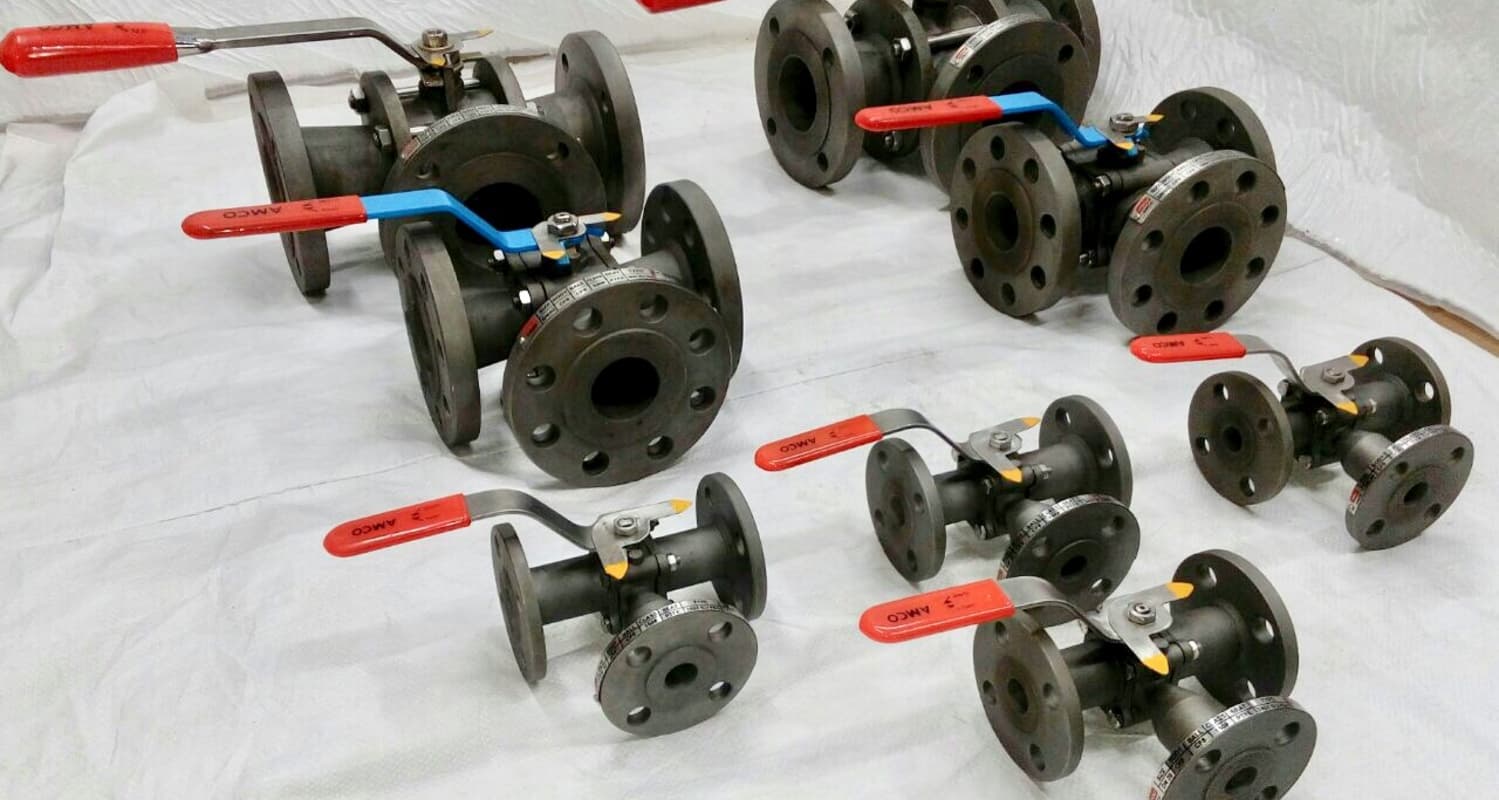

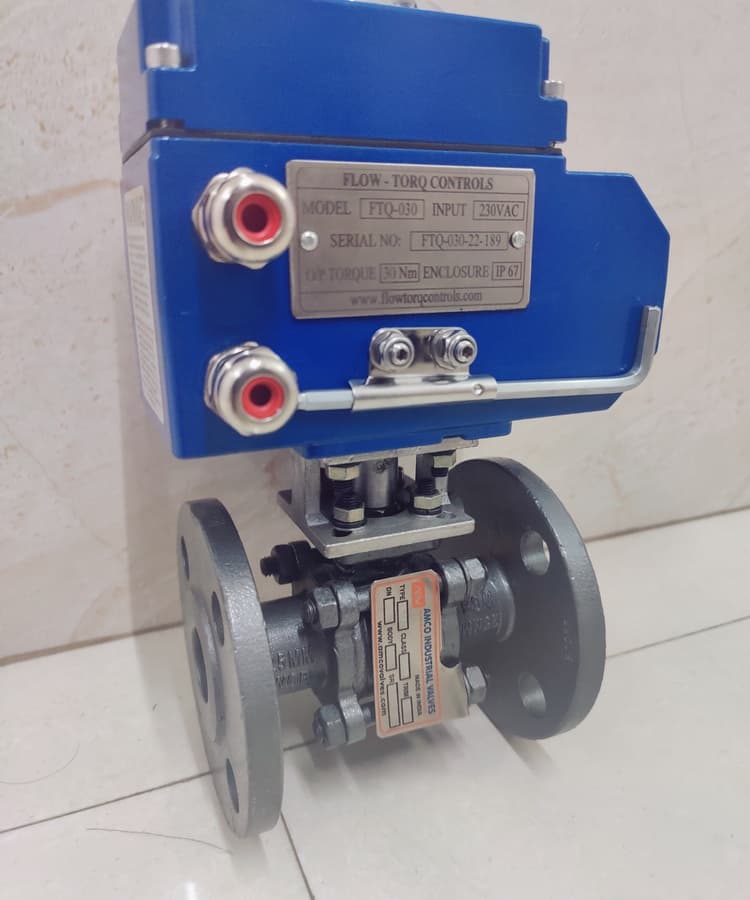

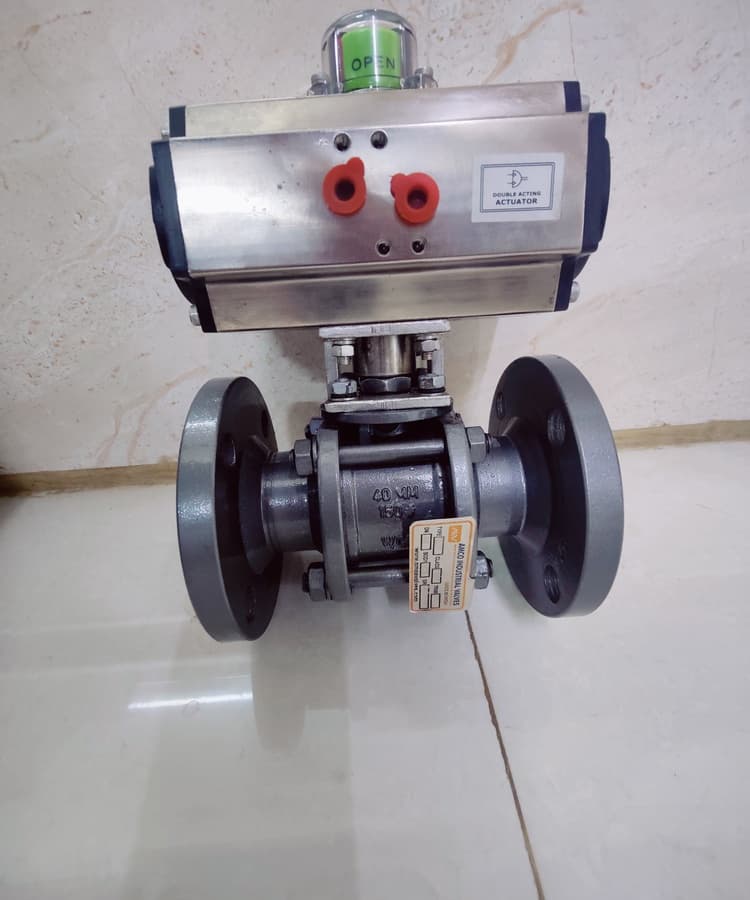

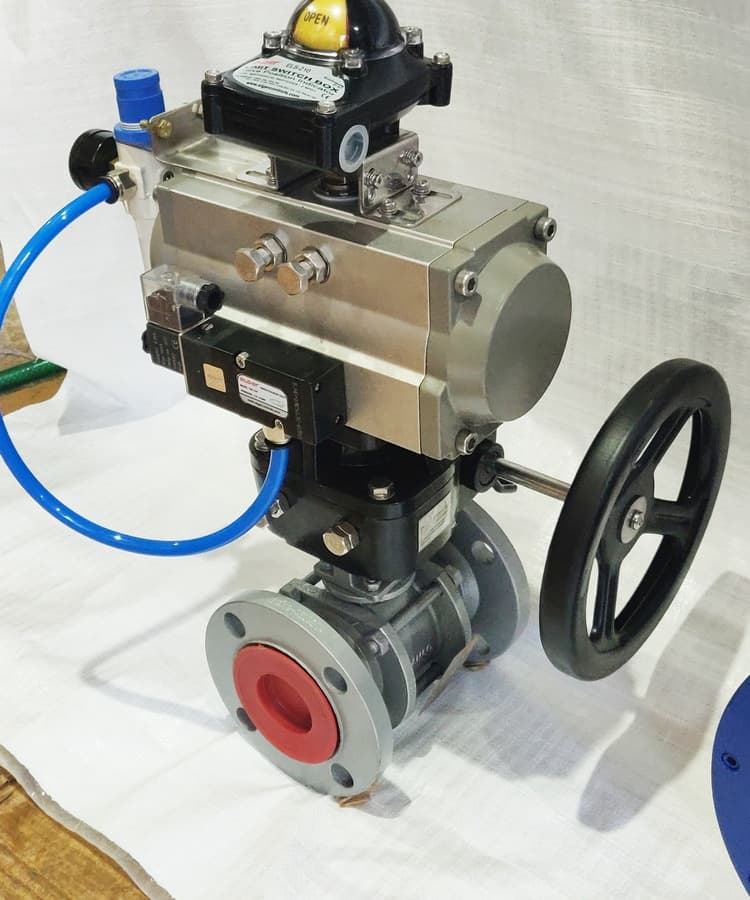

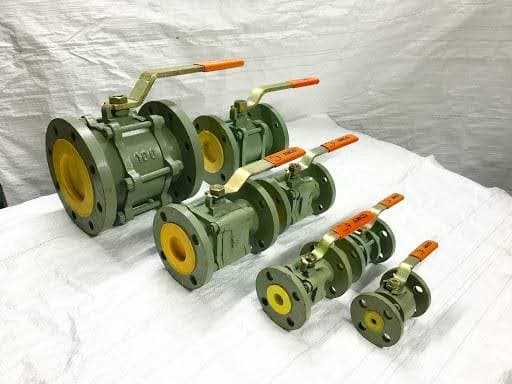

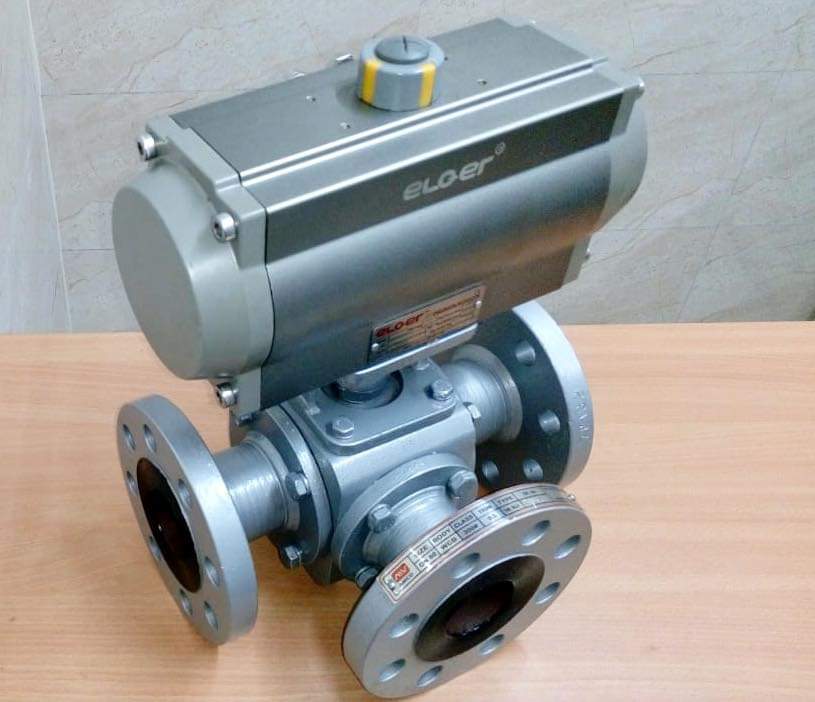

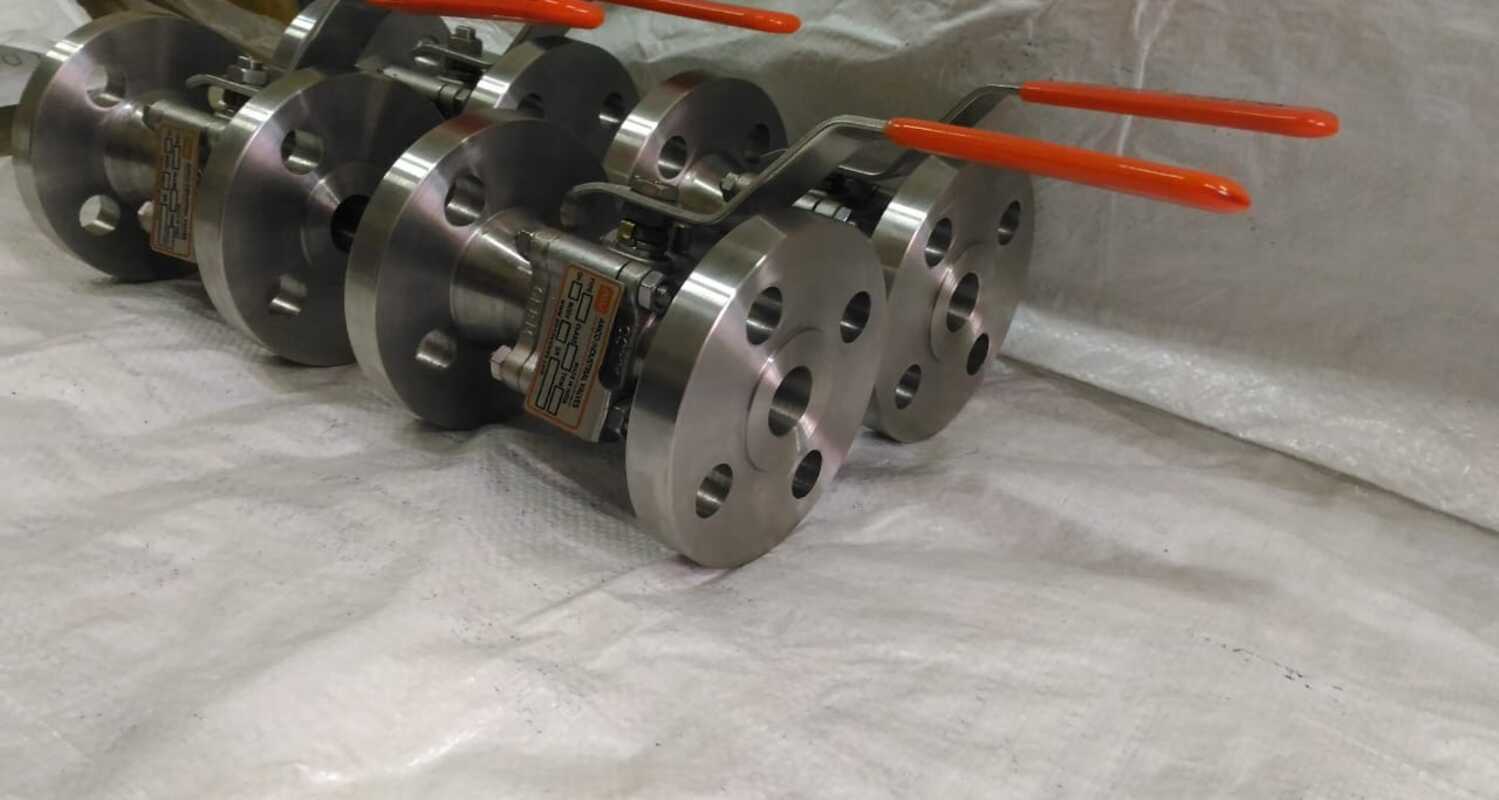

Visual Showcase
| 3PC FLANGED END 150# | 3PC FLANGED END 300# | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | Face To Face (FL) | Face To Face (BW) | Outer Dia | Hole Dia x No. of Holes | PCD | SIZE | Face To Face (FL) | Face To Face (BW) | Outer Dia | Hole Dia x No. of Holes | PCD |
| DN15 | 108 | 140 | 90 | Ø 16 X 4 | 60.3 | DN15 | 140 | 140 | 95 | Ø 16 X 4 | 66.7 |
| DN20 | 117 | 152 | 100 | Ø 16 X 4 | 69.9 | DN20 | 152 | 152 | 115 | Ø 19 X 4 | 82.6 |
| DN25 | 127 | 165 | 110 | Ø 16 X 4 | 79.4 | DN25 | 165 | 165 | 125 | Ø 19 X 4 | 88.9 |
| DN32 | 140 | 178 | 115 | Ø 16 X 4 | 88.9 | DN32 | 178 | 178 | 135 | Ø 19 X 4 | 98.4 |
| DN40 | 165 | 190 | 125 | Ø 16 X 4 | 98.4 | DN40 | 190 | 190 | 155 | Ø 22.2 X 4 | 114.3 |
| DN50 | 178 | 216 | 150 | Ø 19 X 4 | 120.7 | DN50 | 216 | 216 | 165 | Ø 19 X 8 | 127 |
| DN65 | 190 | 241 | 180 | Ø 19 X 4 | 139.7 | DN65 | 241 | 241 | 190 | Ø 22.2 X 8 | 149.2 |
| DN80 | 203 | 282 | 190 | Ø 19 X 4 | 152.4 | DN80 | 282 | 282 | 210 | Ø 22.2 X 8 | 168.3 |
| DN100 | 229 | 305 | 230 | Ø 19 X 8 | 190.5 | DN100 | 305 | 305 | 255 | Ø 22.2 X 8 | 200 |
| DN125 | 254 | - | 255 | Ø 22.2 X 8 | 215.9 | DN125 | 280 | Ø 22.2 X 8 | 235 | ||
| DN150 | 267 | 403 | 280 | Ø 22.2 X 8 | 241.3 | DN150 | 403 | 403 | 320 | Ø 22.2 X 12 | 269.9 |
| DN200 | 292 | 419 | 345 | Ø 22.2 X 8 | 298.5 | DN200 | 419 | 419 | 380 | Ø 25.4 X 12 | 330.2 |
| DN250 | 330 | 457 | 405 | Ø 25.4 X 12 | 362 | DN250 | 457 | 457 | 445 | Ø 29 X 16 | 387.4 |
| DN300 | 356 | 502 | 485 | Ø 25.4 X 12 | 431.8 | DN300 | 502 | 502 | 520 | Ø 32 X 16 | 450.8 |
All dimensions are in mm
| 3PC FLANGED END 600# | 3PC FLANGED END 900# | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE (FL) | FACE TO FACE (BW) | OUTER DIA | HOLE DIA X NO. OF HOLES | PCD | SIZE | FACE TO FACE (FL) | FACE TO FACE (BW) | OUTER DIA | HOLE DIA X NO. OF HOLES | PCD |
| DN15 | 165 | 165 | 95 | Ø 16 X 4 | 66.7 | DN15 | - | - | 120 | Ø 22.2 X 4 | 82.6 |
| DN20 | 190 | 190 | 115 | Ø 19 X 4 | 82.6 | DN20 | - | - | 130 | Ø 22.2 X 4 | 88.9 |
| DN25 | 216 | 216 | 125 | Ø 19 X 4 | 88.9 | DN25 | 254 | 254 | 150 | Ø 25.4 X 4 | 101.6 |
| DN32 | 229 | 229 | 135 | Ø 19 X 4 | 98.4 | DN32 | 279 | 279 | 160 | Ø 25.4 X 4 | 111.1 |
| DN40 | 241 | 241 | 155 | Ø 22.2 X 4 | 114.3 | DN40 | 305 | 305 | 180 | Ø 29 X 4 | 123.8 |
| DN50 | 292 | 292 | 165 | Ø 19 X 8 | 127.0 | DN50 | 368 | 368 | 215 | Ø 25.4 X 8 | 165.1 |
| DN65 | 330 | 330 | 190 | Ø 22.2 X 8 | 149.2 | DN65 | 419 | 419 | 245 | Ø 29 X 8 | 190.5 |
| DN80 | 356 | 356 | 210 | Ø 22.2 X 8 | 168.3 | DN80 | 381 | 381 | 240 | Ø 25.4 X 8 | 190.5 |
| DN100 | 432 | 432 | 275 | Ø 25.4 X 8 | 215.9 | DN100 | 457 | 457 | 290 | Ø 32 X 8 | 235 |
| DN125 | 330 | Ø 29 X 8 | 266.7 | DN125 | 350 | Ø 35 X 8 | 279.4 | ||||
All dimensions are in mm
