Floating Design
3 Piece Design Screwed / Socket weld 150# & 300#
Size :DN6 - DN100
Material of construction :WCB / CF8 / CF8M / CF3 / CF3M
End connection :BSPF / NPTF / SW / BW
Pressure rating :150# / 300#
Mode of operation :Lever, Actuator
Manufacturing Standard :ISO 17292
Testing Standard :ISO 5208

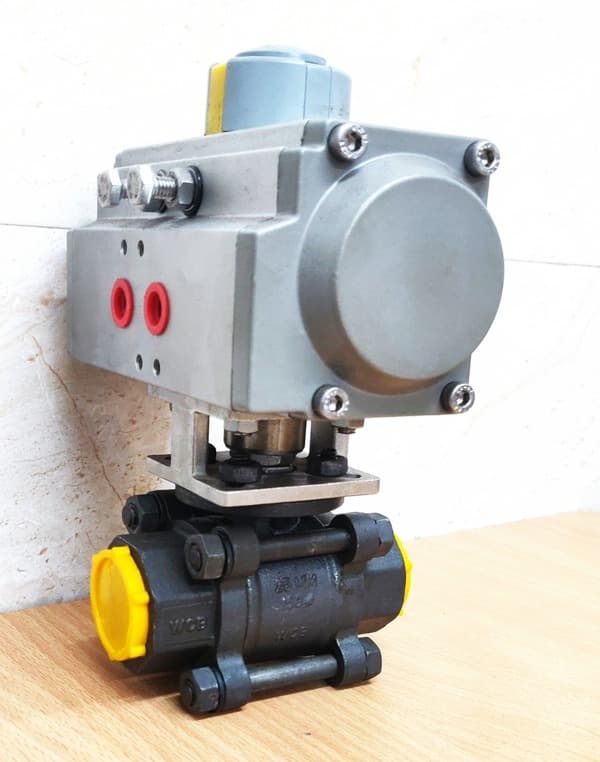

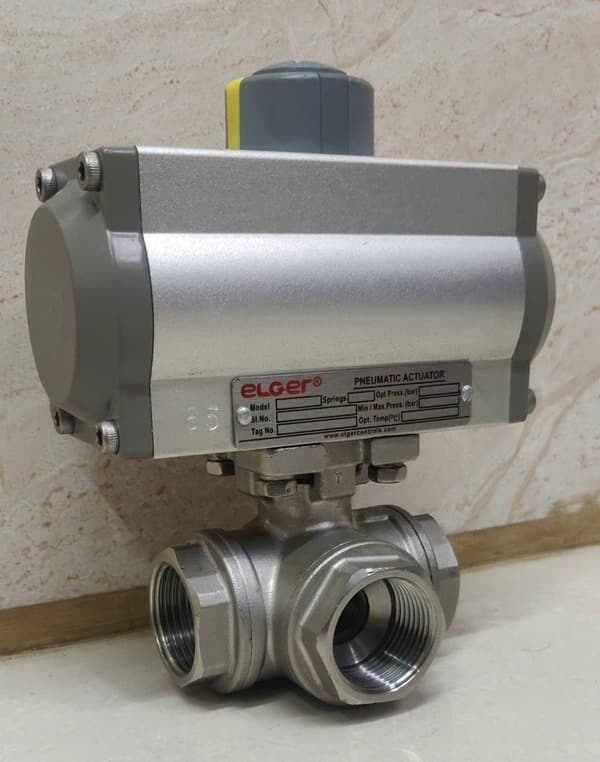

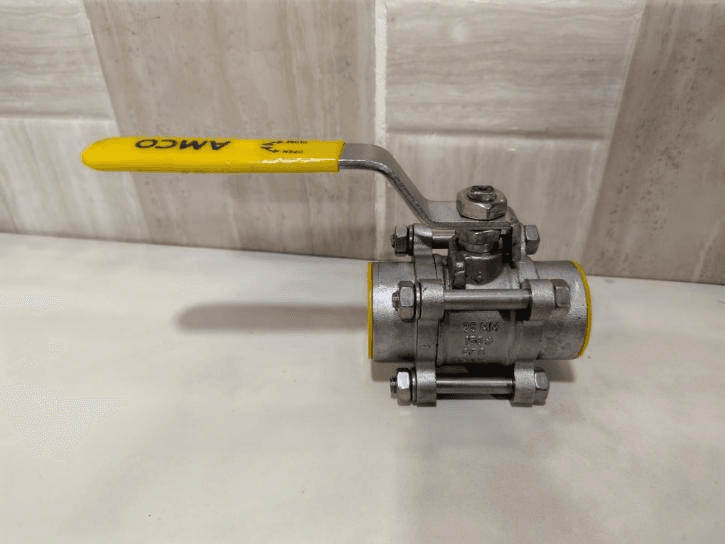

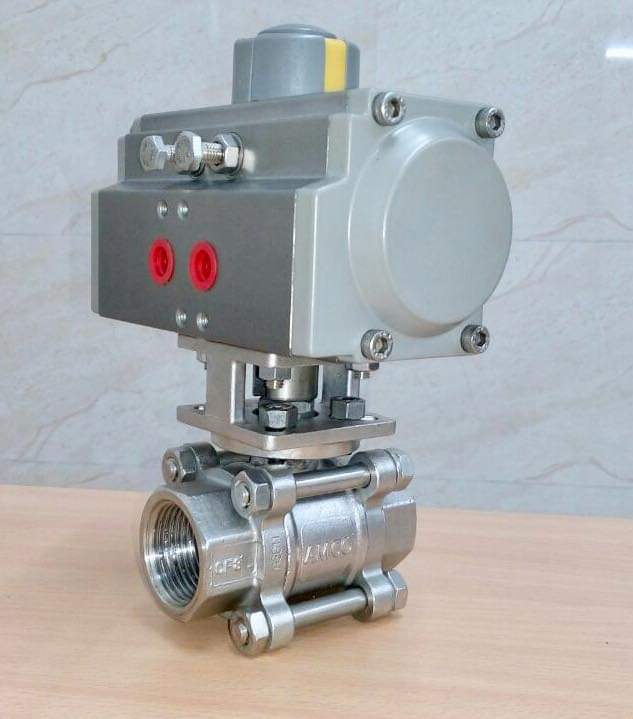

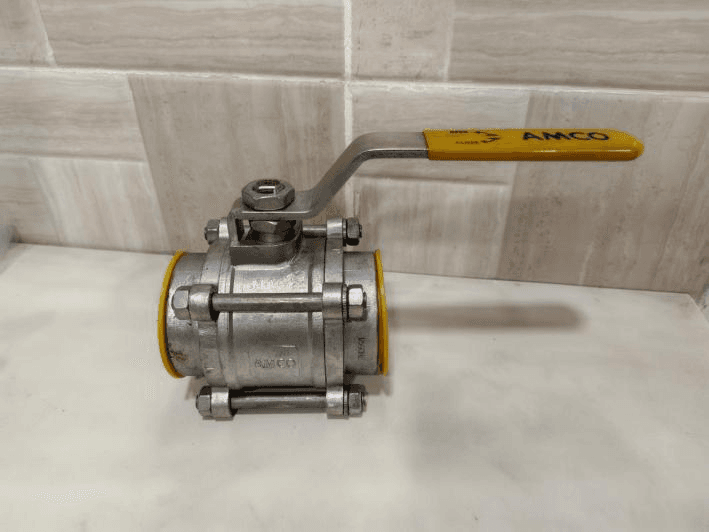

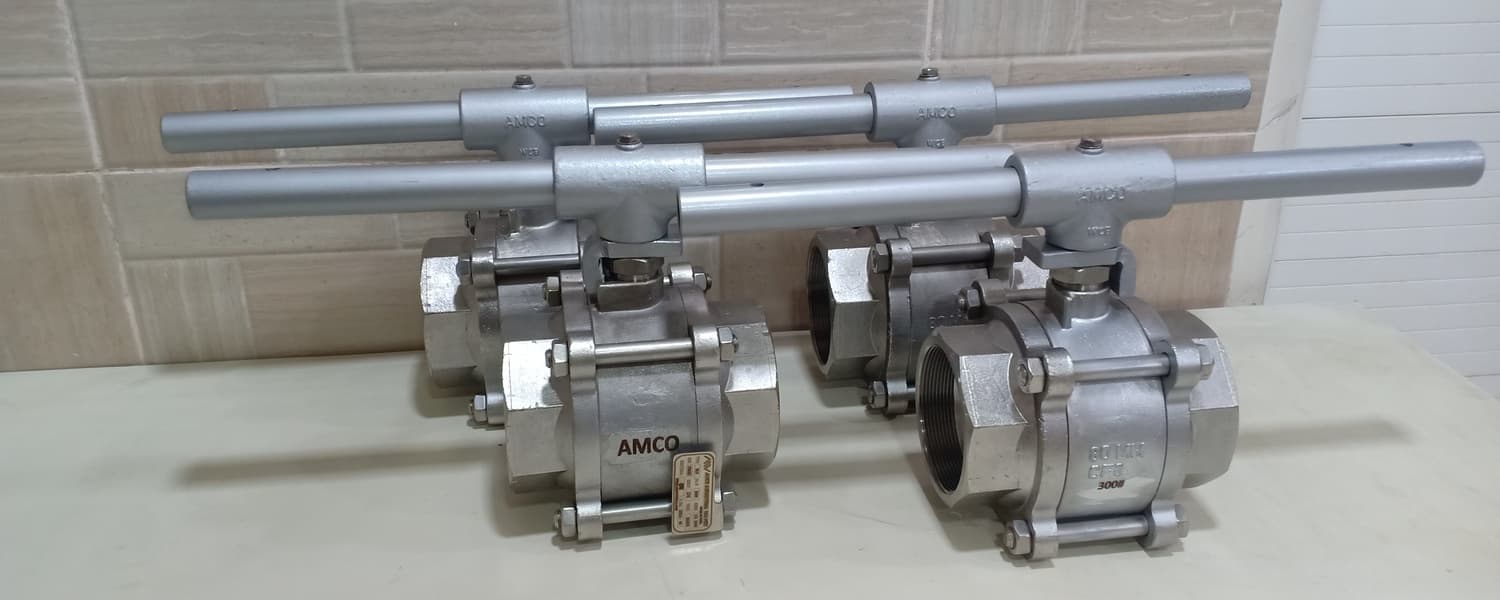

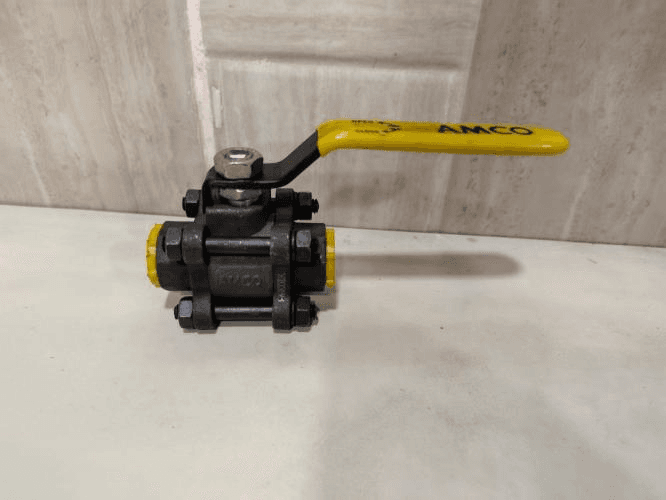

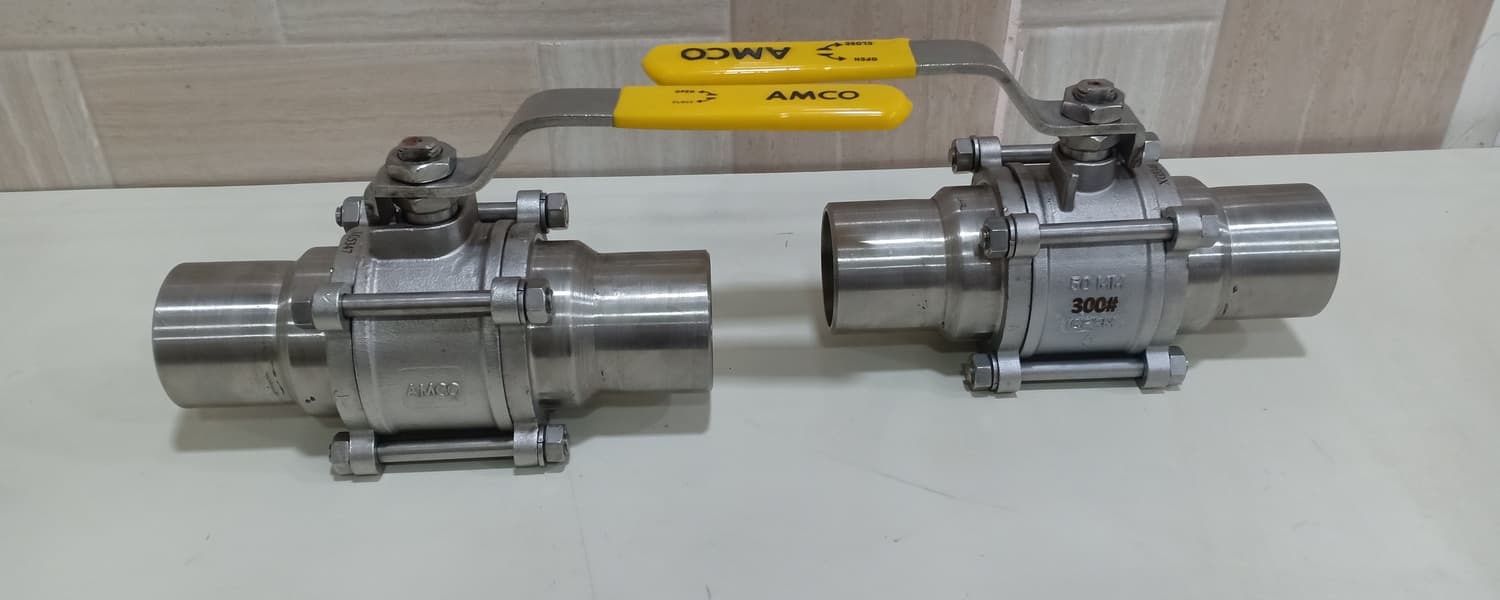

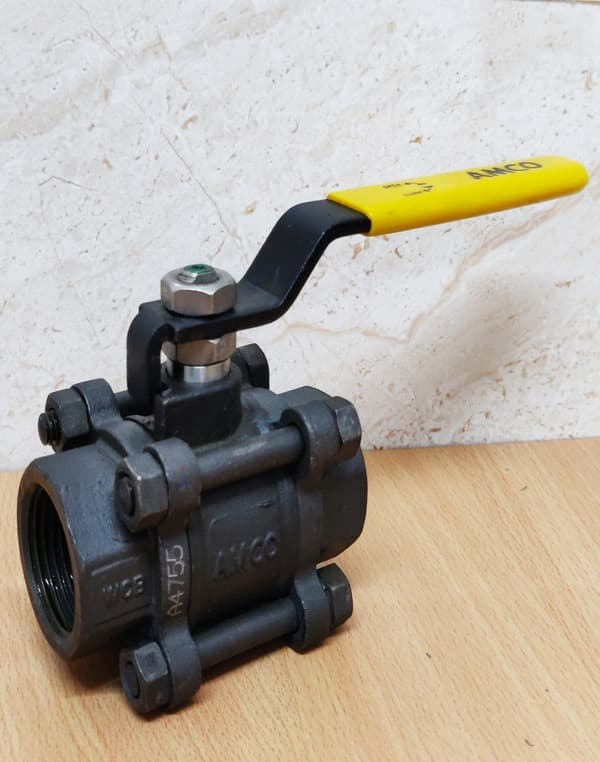

Visual Showcase
| SIZE | 3PC DESIGN SCREWED / SOCKETWELD 150# | 3PC DESIGN SCREWED / SOCKETWELD 300# | ||||
|---|---|---|---|---|---|---|
| FULL BORE | FULL BORE | |||||
| SIZE | FACE TO FACE | LEVER LENGTH | HEIGHT | FACE TO FACE | LEVER LENGTH | HEIGHT |
| DN8 | 63 | 110 | 50 | 63 | 110 | 50 |
| DN10 | 63 | 110 | 50 | 63 | 110 | 50 |
| DN15 | 63 | 110 | 50 | 63 | 110 | 50 |
| DN20 | 75 | 110 | 55 | 75 | 110 | 55 |
| DN25 | 87 | 140 | 70 | 87 | 140 | 70 |
| DN32 | 88 | 180 | 26 | 88 | 180 | 26 |
| DN40 | 110 | 180 | 90 | 110 | 180 | 90 |
| DN50 | 112 | 180 | 105 | 112 | 180 | 105 |
| DN65 | on request | on request | on request | on request | on request | on request |
| DN80 | 162 | 290 | 135 | 162 | 290 | 135 |
| DN100 | on request | on request | on request | on request | on request | on request |
All dimensions are in mm
