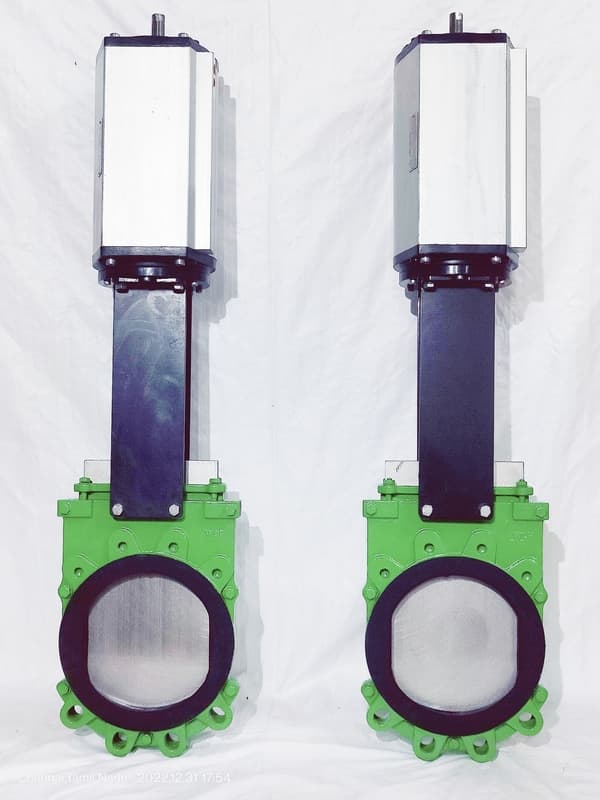

Bi Directional
2 piece design Wafer Lugged Resilient seat PN10#
Size :DN50 - DN1000
Material of construction
(Bill of material) :DI / CF8 / CF8M
(Bill of material) :DI / CF8 / CF8M
Seat :EPDM
Lining :Natural rubber
End connection :Wafer Lugged to suit ANSI flanges / ND 10
Pressure rating :PN10#
Mode of operation :Wheel, Gear, Actuator
Manufacturing Standard :MSS SP 81
Testing Standard :MSS SP 81

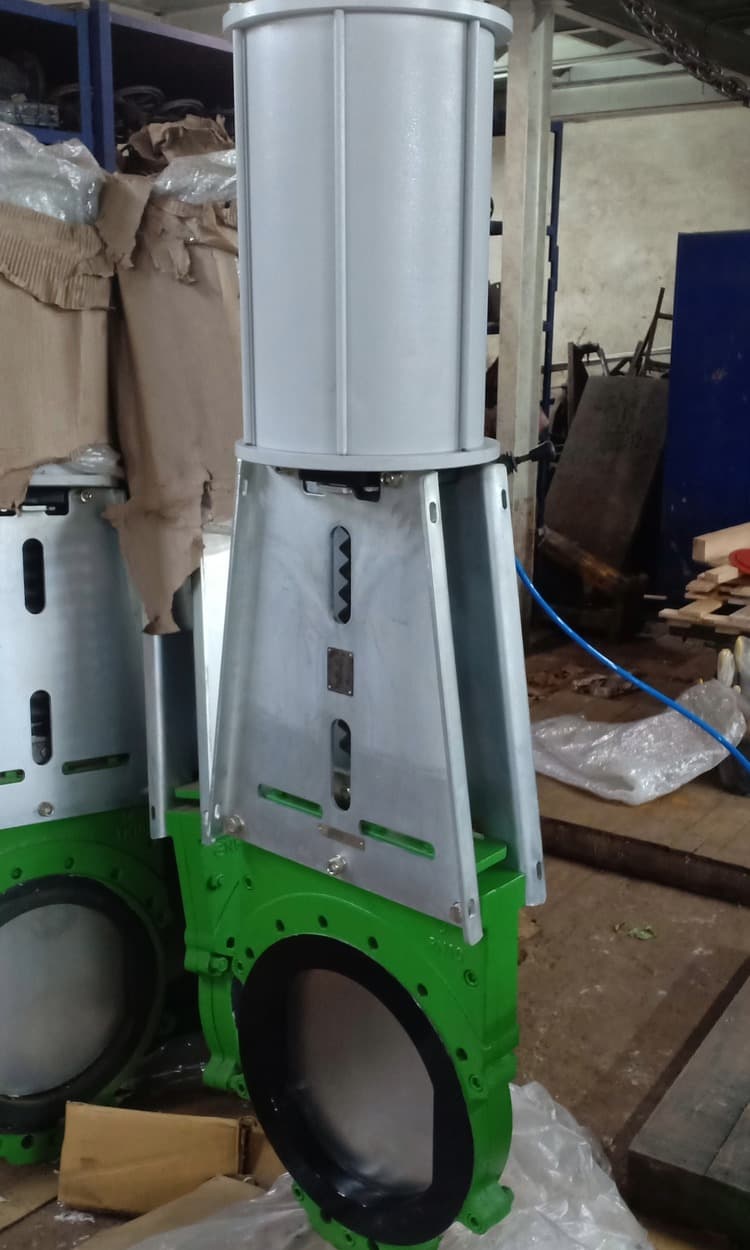

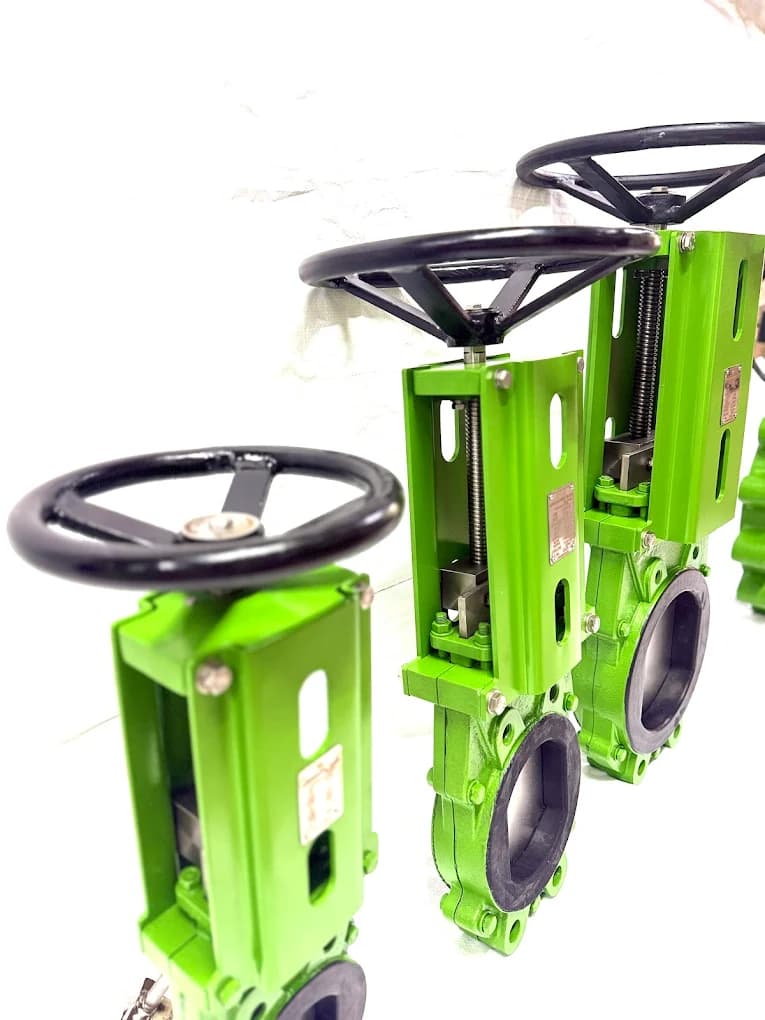

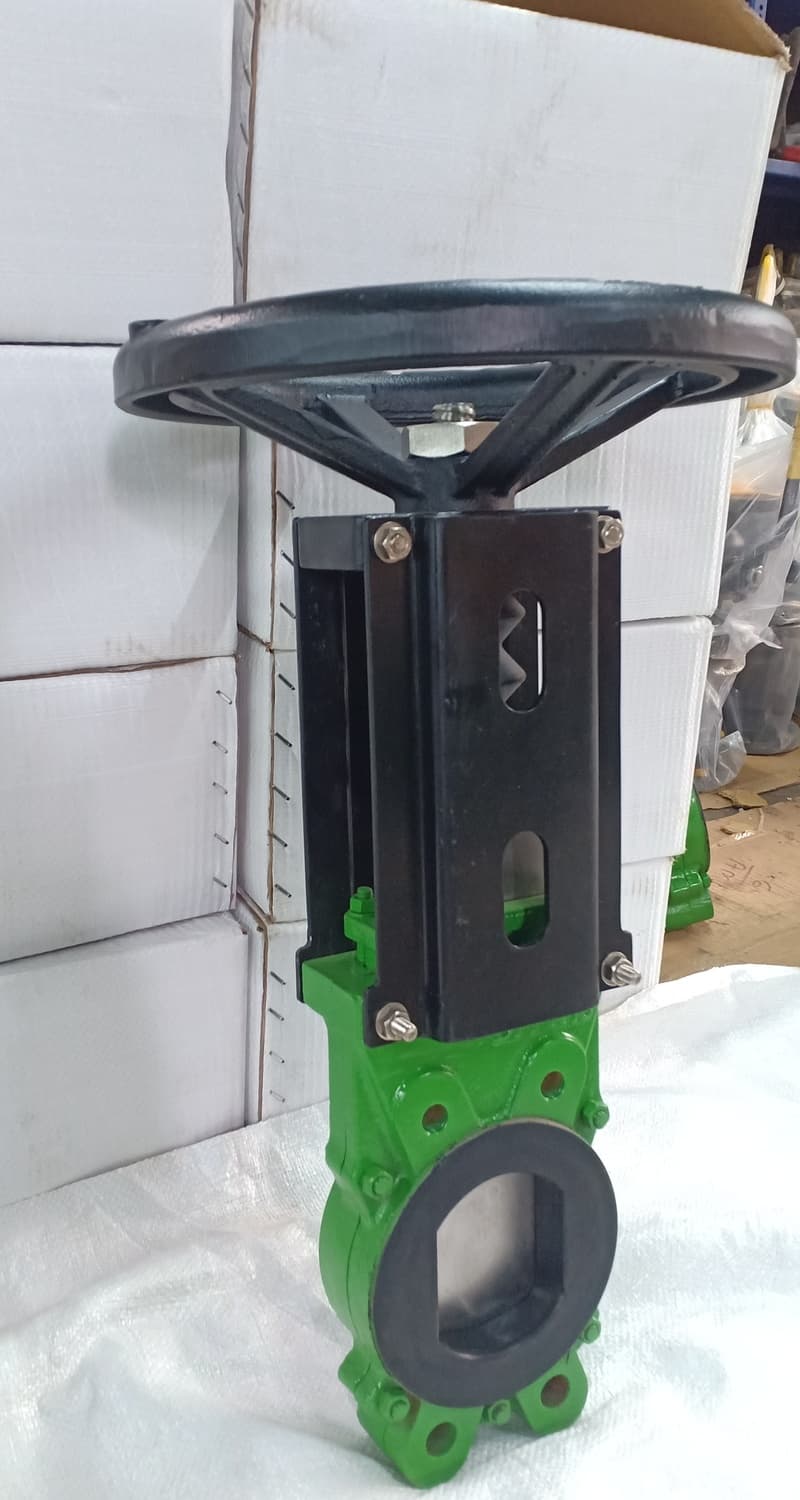

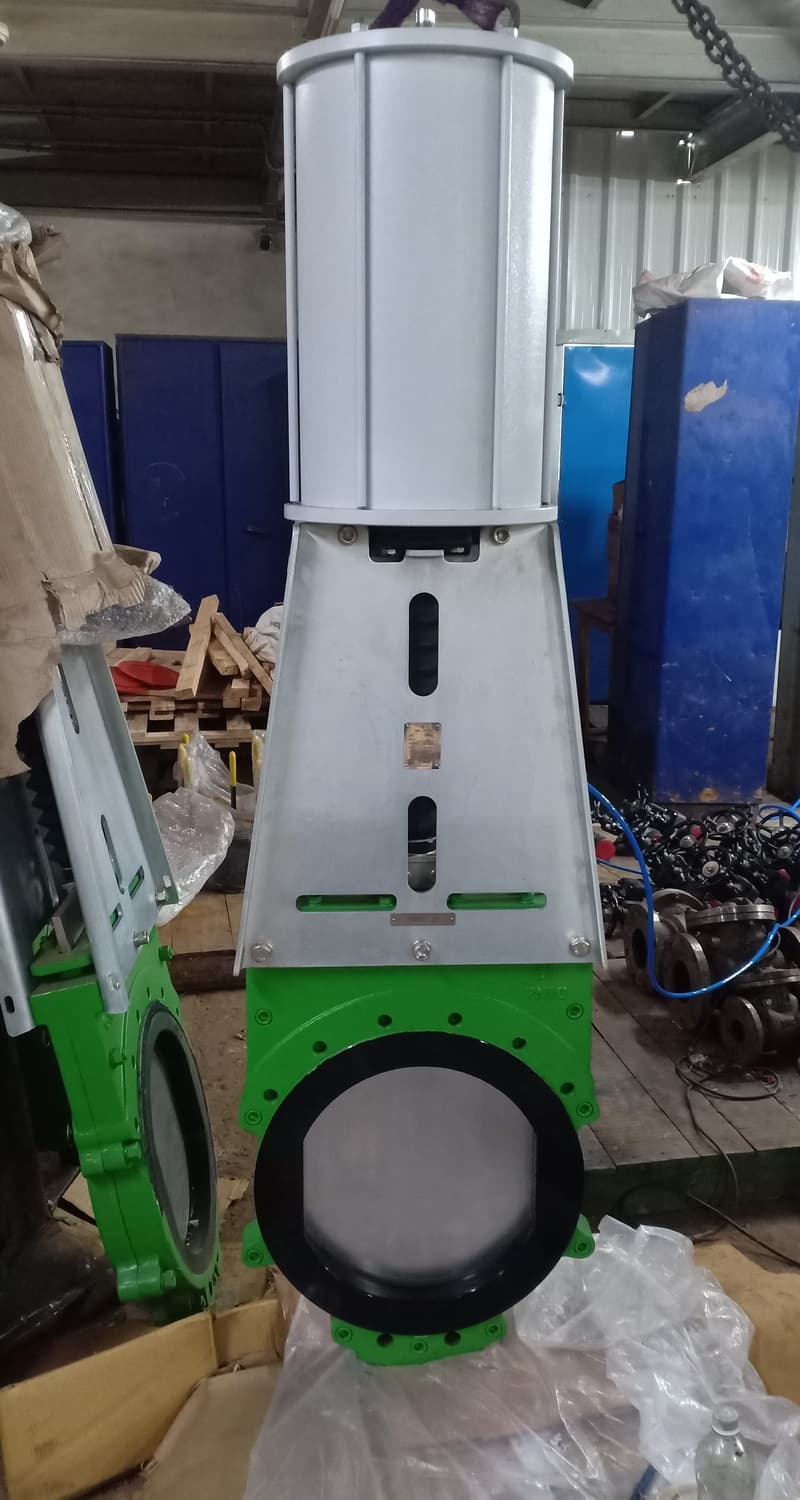

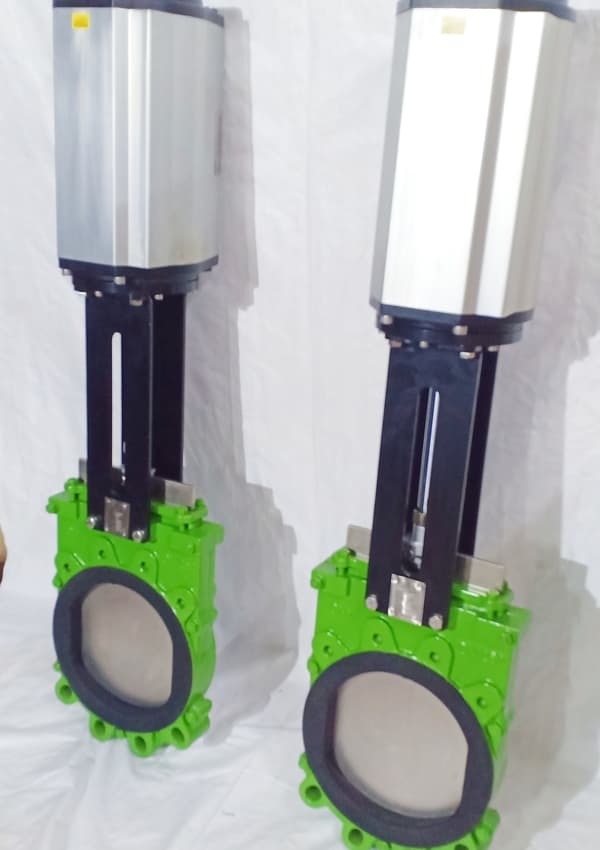

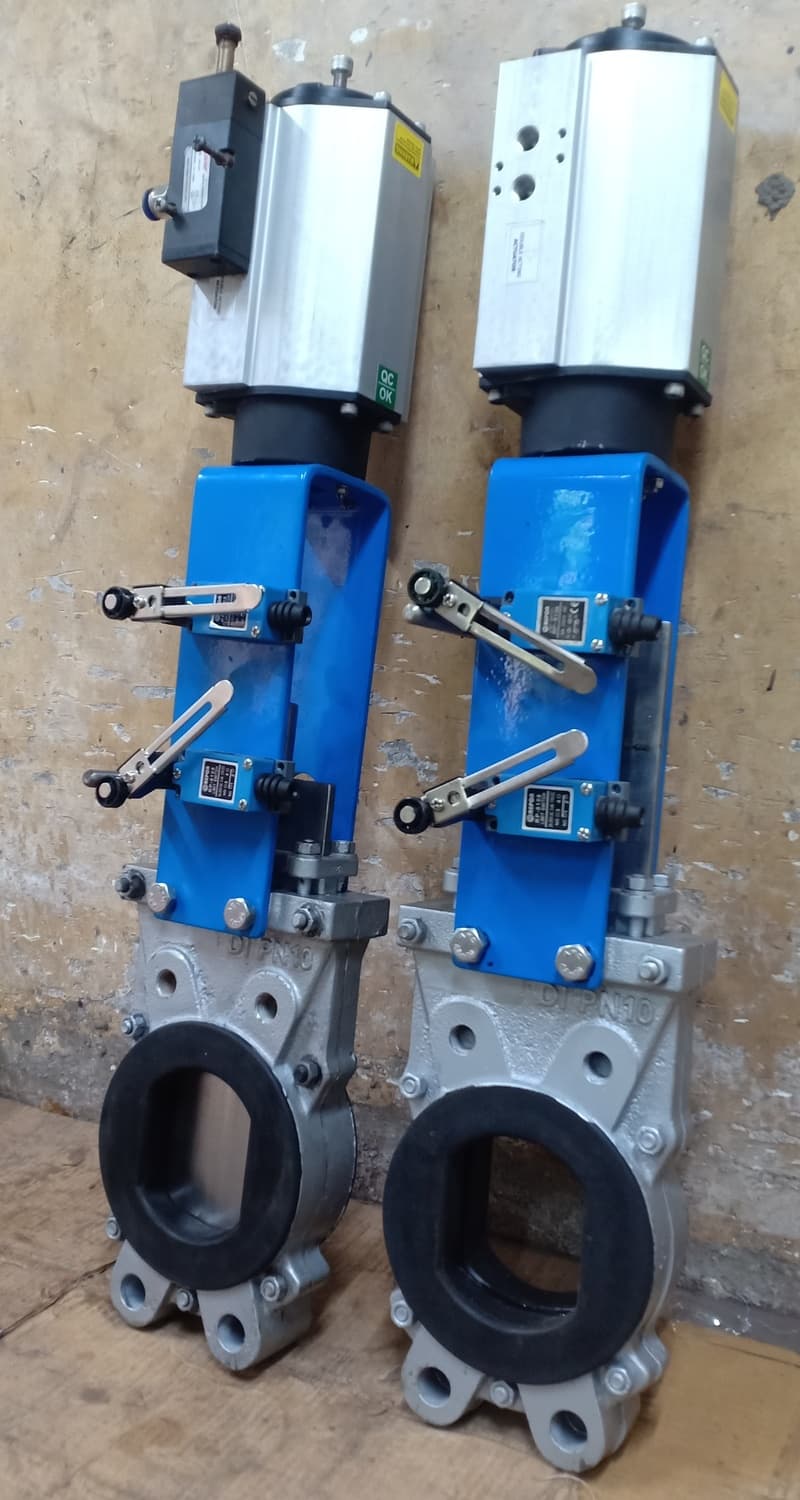

Visual Showcase
| WAFER LUGGED BI-DIRECTIONAL TWO PIECE DESIGN RESILIENT SEAT KGV | ||||
|---|---|---|---|---|
| SIZE | FACE TO FACE (LINED) | BORE DIA | HEIGHT (CENTER TO TOP) | WHEEL DIA |
| DN50 | - | - | - | - |
| DN65 | - | - | - | - |
| DN80 | 57 | 82 | 410 | 225 |
| DN100 | 58 | 102 | 455 | 300 |
| DN125 | - | - | - | - |
| DN150 | 63 | 152 | 530 | 300 |
| DN200 | 78 | 200 | 640 | 300 |
| DN250 | 78 | 250 | 740 | 300 |
| DN300 | 84 | 300 | 830 | 300 |
| DN350 | 84 | 334 | 930 | 450 |
| DN400 | 97 | 380 | 1080 | 450 |
All dimensions are in mm
| SIZE | TO SUIT 150# FLANGES | TO SUIT PN10# FLANGES | ||||
|---|---|---|---|---|---|---|
| PCD | HOLE DIA | NO. OF HOLES | PCD | HOLE DIA | NO. OF HOLES | |
| DN50 | 120.7 | 19 | 4 | 125 | 18 | 4 |
| DN65 | 139.7 | 19 | 4 | 145 | 18 | 4 |
| DN80 | 152.4 | 19 | 4 | 160 | 18 | 8 |
| DN100 | 190.5 | 19 | 8 | 180 | 18 | 8 |
| DN125 | 215.9 | 22.2 | 8 | 210 | 18 | 8 |
| DN150 | 241.3 | 22.2 | 8 | 240 | 22 | 8 |
| DN200 | 298.5 | 22.2 | 8 | 295 | 22 | 8 |
| DN250 | 362 | 25.4 | 12 | 350 | 22 | 12 |
| DN300 | 431.8 | 25.4 | 12 | 400 | 22 | 12 |
| DN350 | 476.3 | 29 | 12 | 460 | 22 | 16 |
| DN400 | 539.8 | 29 | 16 | 515 | 26 | 16 |
All dimensions are in mm
