Double Offset Design
Double Flanged 150# / 300#
Size :DN40 - DN1000
Material of construction :WCB / CF8 / CF8M / CF3 / CF3M / DSS / SDS / AL. BR
Seat :PTFE / CFT / GFT
End connection :Flanged to suit ANSI flanges
Pressure rating :150# / 300#
Mode of operation :Lever, Gear, Actuator
Manufacturing Standard :API 609 (Cat.A)
Testing Standard :API 598

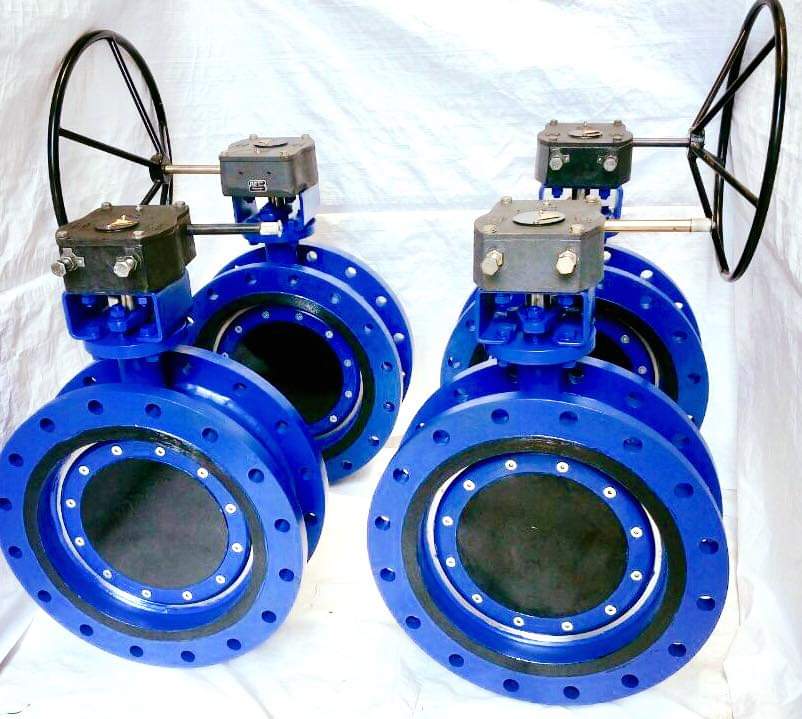

Visual Showcase
| FLANGED BFV TO SUIT 150# FLANGES | |||
|---|---|---|---|
| SIZE | FACE TO FACE | CENTER TO TOP | CENTER TO BOTTOM |
| DN40 | - | - | - |
| DN50 | 109 | 163 | 93 |
| DN65 | 112 | 162 | 101 |
| DN80 | 114 | 190 | 118 |
| DN100 | 127 | 220 | 139 |
| DN125 | 140 | 220 | 139 |
| DN150 | 140 | 220 | 151 |
| DN200 | 152 | 277 | 183 |
| DN250 | 165 | 304 | 217 |
| DN300 | 178 | 380 | 265 |
| DN350 | 190 | 405 | 284 |
| DN400 | 216 | 484 | 315 |
| DN450 | 222 | 491 | 339 |
| DN500 | 229 | 577 | 390 |
| DN600 | 267 | 634 | 438 |
| DN700 | 292 | 730 | 500 |
| DN750 | 318 | 745 | 540 |
| DN800 | 318 | 781 | 560 |
| DN900 | 330 | 860 | 650 |
| DN1000 | 410 | 990 | 732 |
All dimensions are in mm
| FLANGED BFV TO SUIT 300# FLANGES | |||
|---|---|---|---|
| SIZE | FACE TO FACE | CENTER TO TOP | CENTER TO BOTTOM |
| DN40 | - | - | - |
| DN50 | 108 | 167 | 98 |
| DN65 | 114 | 184 | 120 |
| DN80 | 114 | 190 | 118 |
| DN100 | 127 | 190 | 123 |
| DN125 | 140 | 200 | 139 |
| DN150 | 140 | 245 | 173 |
| DN200 | 152 | 305 | 207 |
| DN250 | 165 | 351 | 240 |
| DN300 | 178 | 400 | 277 |
| DN350 | 190 | 457 | 318 |
| DN400 | 216 | 528 | 365 |
| DN450 | 222 | 591 | 400 |
| DN500 | 229 | 602 | 436 |
| DN600 | 267 | 795 | 504 |
| DN700 | - | - | - |
| DN750 | - | - | - |
| DN800 | - | - | - |
| DN900 | - | - | - |
| DN1000 | - | - | - |
All dimensions are in mm
| SIZE | TO SUIT 150# FLANGES | TO SUIT 300# FLANGES | ||||
|---|---|---|---|---|---|---|
| PCD | HOLE DIA | NO. OF HOLES | PCD | HOLE DIA | NO. OF HOLES | |
| DN40 | 98.4 | 16 | 4 | - | - | - |
| DN50 | 120.7 | 19 | 4 | 127 | 19 | 8 |
| DN65 | 139.7 | 19 | 4 | 149.2 | 22.2 | 8 |
| DN80 | 152.4 | 19 | 4 | 168.3 | 22.2 | 8 |
| DN100 | 190.5 | 19 | 8 | 200 | 22.2 | 8 |
| DN125 | 215.9 | 22.2 | 8 | 235 | 22.2 | 8 |
| DN150 | 241.3 | 22.2 | 8 | 269.9 | 22.2 | 12 |
| DN200 | 298.5 | 22.2 | 8 | 330.2 | 25.4 | 12 |
| DN250 | 362.0 | 25.4 | 12 | 387.4 | 29 | 16 |
| DN300 | 431.8 | 25.4 | 12 | 450.8 | 32 | 16 |
| DN350 | 476.3 | 29 | 12 | 514.4 | 32 | 20 |
| DN400 | 539.8 | 29 | 16 | 571.5 | 35 | 20 |
| DN450 | 577.9 | 32 | 16 | 628.6 | 35 | 24 |
| DN500 | 635.0 | 32 | 20 | 685.8 | 35 | 24 |
| DN600 | 749.3 | 35 | 20 | 812.8 | 41 | 24 |
| DN700 | 863.6 | 35 | 28 | - | - | - |
| DN750 | 914.4 | 35 | 28 | - | - | - |
| DN800 | 977.9 | 41.2 | 28 | - | - | - |
| DN900 | 1085.8 | 41.2 | 32 | - | - | - |
| DN1000 | 1200.2 | 41.2 | 36 | - | - | - |
All dimensions are in mm
