High Pressure Ball Valve
High Pressure Ball Valve
Size :-DN06 - DN50
Material of construction :-CS / SS / Alloy steel / Duplex SS
End connection :-BSPF / NPTF / SW (extended nipple)
Pressure rating :-3000 PSI / 6000 PSI

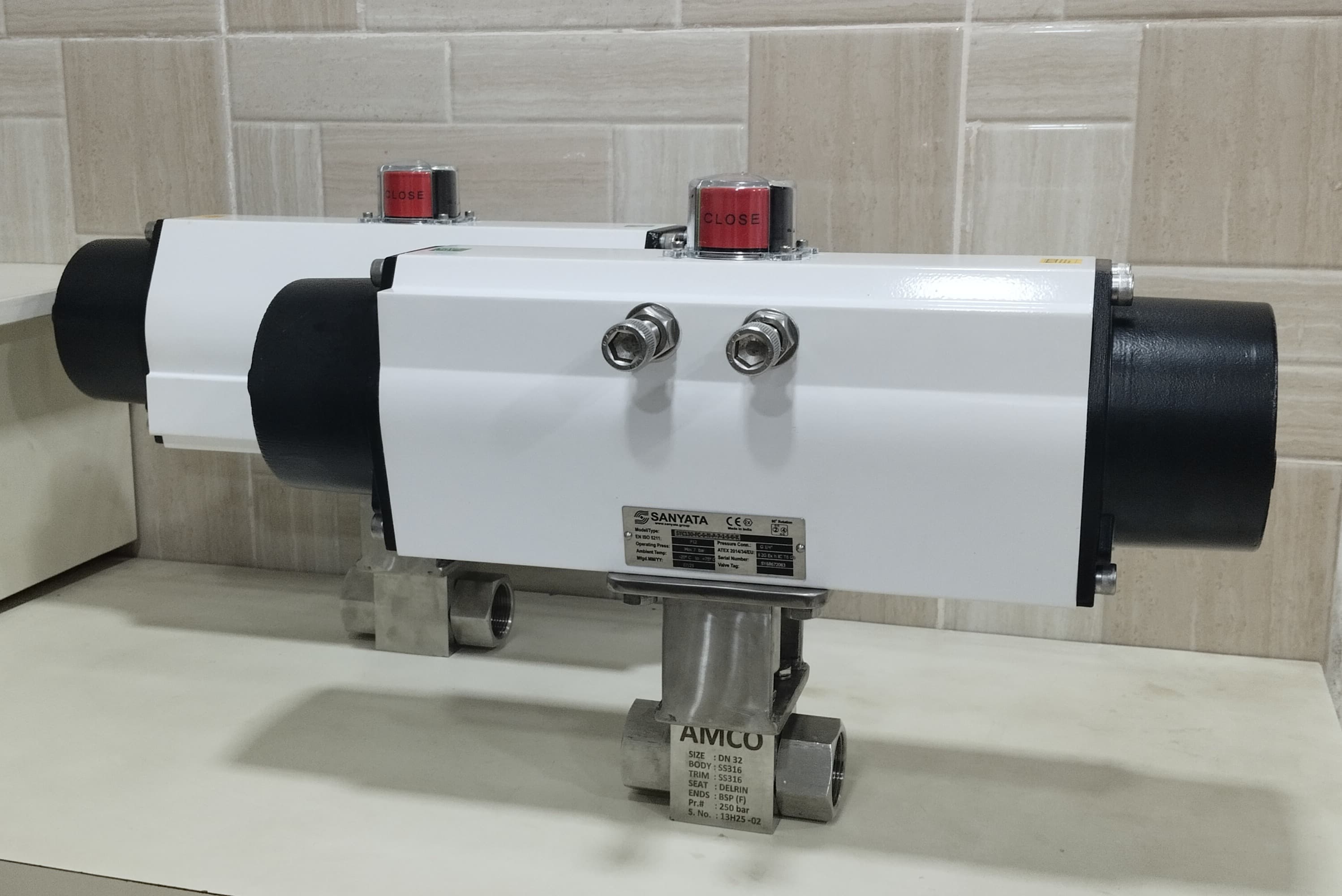

Mode of operation :-Lever, Actuator
Manufacturing Standard :-ISO 17292 / API 608
Testing Standard :-ISO 5208 / API 598

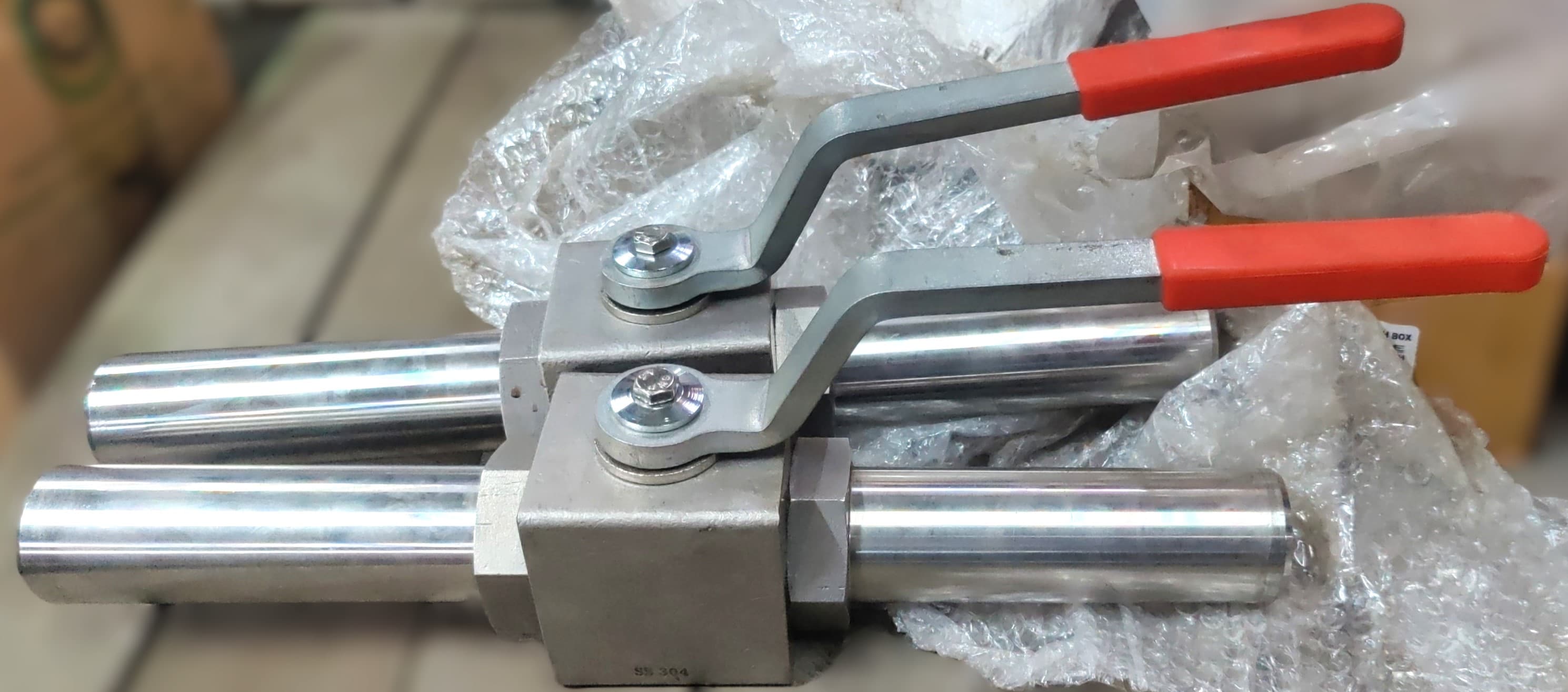

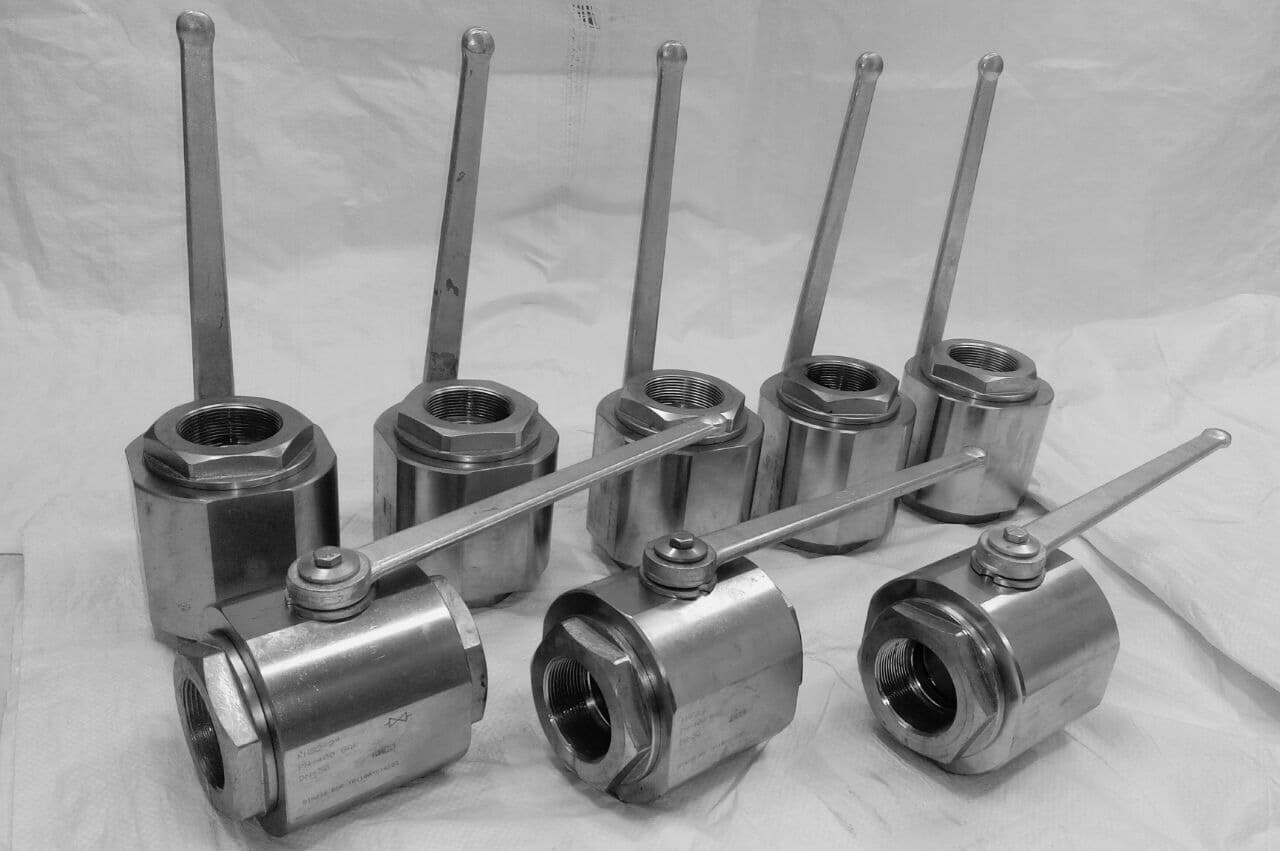

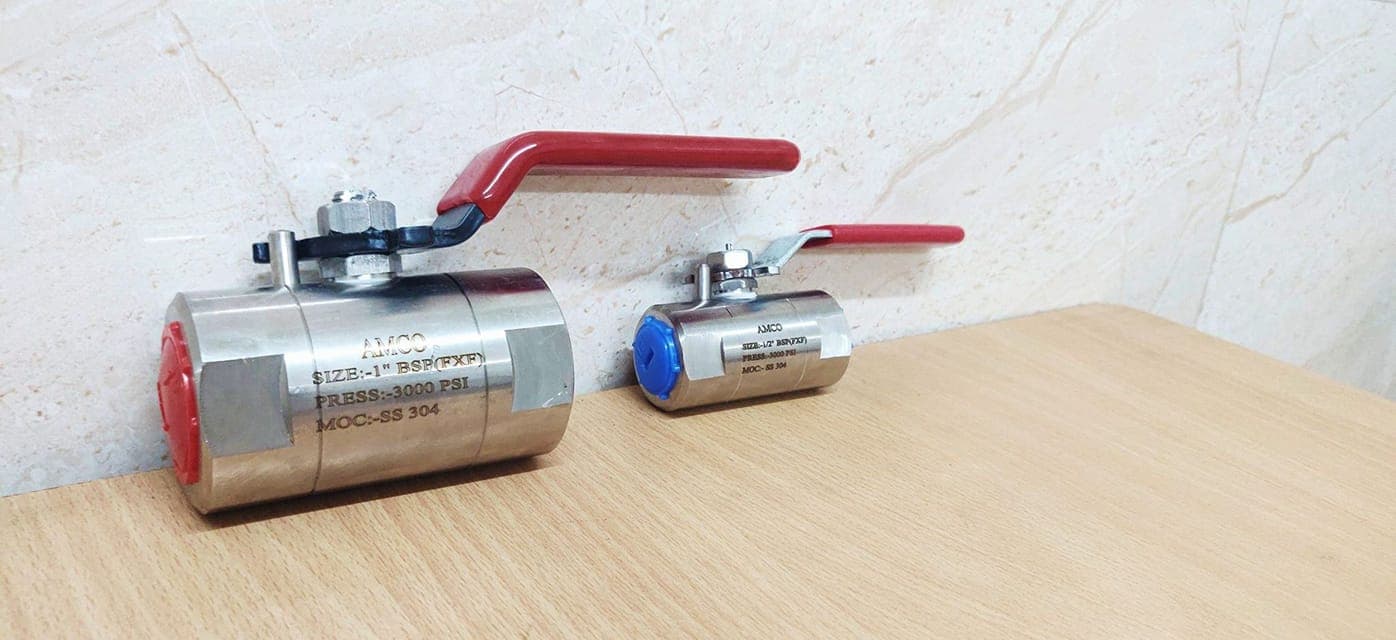

Visual Showcase
| HIGH PRESSURE BALL VALVE 3000 psi / 6000 psi | ||||
|---|---|---|---|---|
| SIZE | FACE TO FACE | BORE | LEVER LENGTH | CENTER TO TOP HEIGHT |
| DN8 | 71 | 6 | 110 | 91 |
| DN10 | 73 | 10 | 110 | 96 |
| DN15 | 83 | 13 | 110 | 100 |
| DN20 | 95 | 20 | 180 | 106 |
| DN25 | 112 | 25 | 180 | 116 |
| DN32 | 110 | 32 | 305 | 145 |
| DN40 | 130 | 38 | 305 | 155 |
| DN50 | 140 | 50 | 305 | 173 |
All dimensions are in mm
