Uni Directional
Wafer Lugged Resilient seat PN10#
Size :DN50 - DN1000
Material of construction
(Bill of material) :WCB / CF8 / CF8M / CF3 / CF3M / DSS / SDS
(Bill of material) :WCB / CF8 / CF8M / CF3 / CF3M / DSS / SDS
Seat :PTFE / EPDM / VITON
End connection :Wafer Lugged to suit ANSI flanges
Pressure rating :PN10#
Mode of operation :Wheel, Gear, Actuator
Manufacturing Standard :MSS SP 81
Testing Standard :MSS SP 81

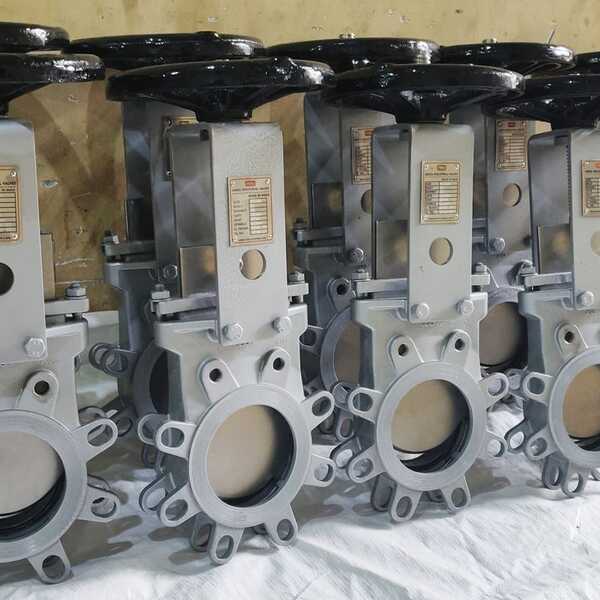

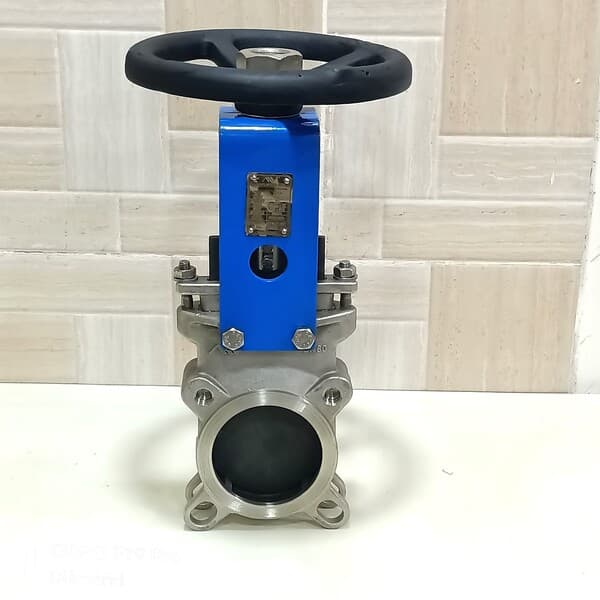

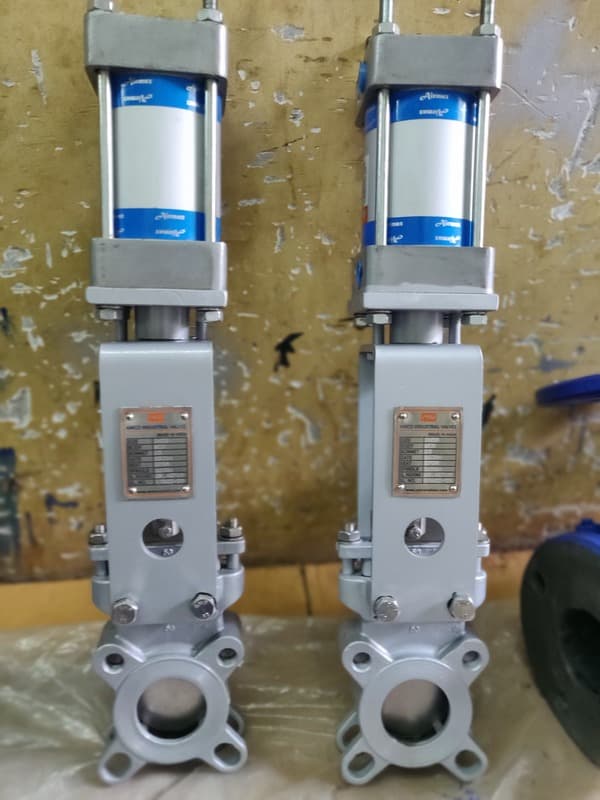

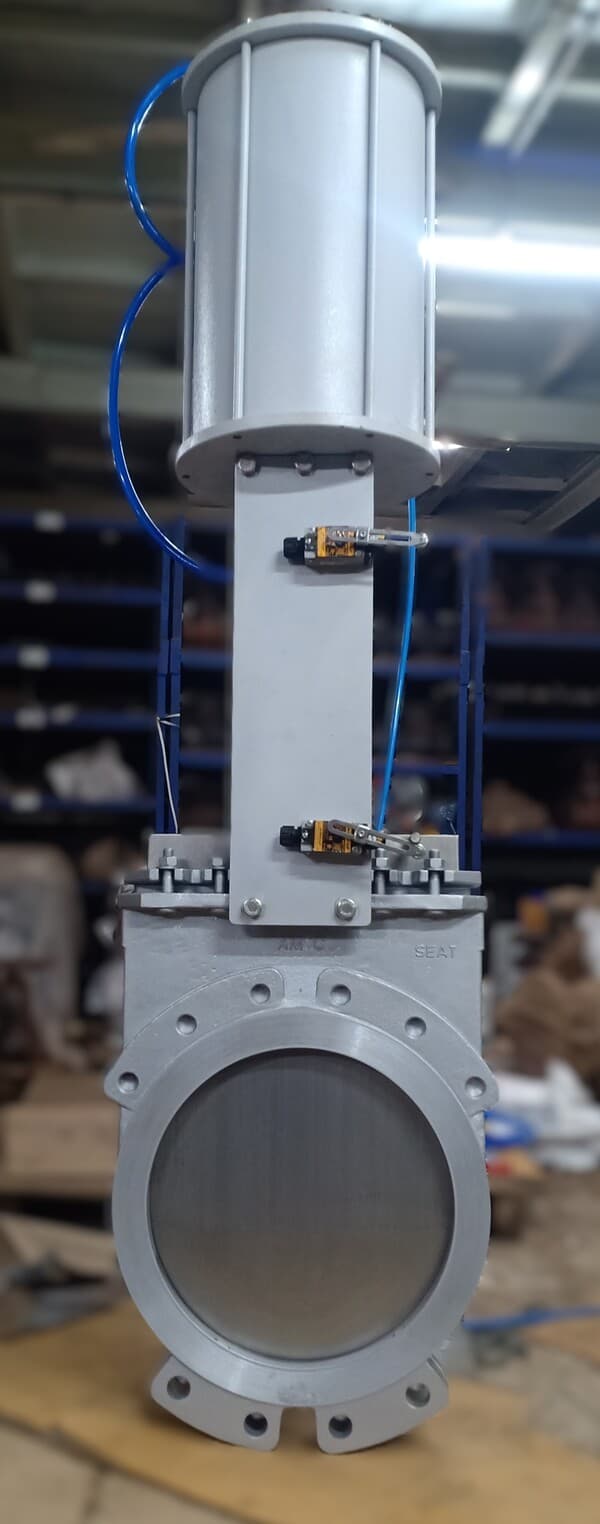

Visual Showcase
| WAFER LUGGED UNI-DIRECTIONAL RESILIENT SEAT KGV | ||||
|---|---|---|---|---|
| SIZE | FACE TO FACE | BORE DIA | HEIGHT (CENTER TO TOP) | WHEEL DIA |
| DN50 | 48 | 50 | 281 | 225 |
| DN65 | 51 | 63 | 308 | 225 |
| DN80 | 51 | 80 | 335 | 225 |
| DN100 | 51 | 97 | 374 | 225 |
| DN125 | 57 | 117 | 418 | 225 |
| DN150 | 57 | 140 | 465 | 225 |
| DN200 | 70 | 184 | 581 | 310 |
| DN250 | 70 | 230 | 681 | 310 |
| DN300 | 76 | 275 | 781 | 310 |
| DN350 | 76 | 305 | 902 | 410 |
| DN400 | 89 | 351.6 | 1004 | 410 |
| DN450 | 89 | 390 | 1028 | 550 |
| DN500 | 114 | 435 | 1120 | 550 |
| DN600 | 114 | 522 | 1438 | 550 |
| DN700 | - | - | - | - |
| DN750 | 117 | 670 | 1634 | - |
| DN800 | 117 | 794 | 1871 | - |
| DN900 | 117 | 810 | 1945 | - |
| DN1000 | - | - | - | - |
| SIZE | TO SUIT 150# FLANGES | TO SUIT PN10# FLANGES | ||||
|---|---|---|---|---|---|---|
| PCD | HOLE DIA | NO. OF HOLES | PCD | HOLE DIA | NO. OF HOLES | |
| DN50 | 120.7 | 19 | 4 | 125 | 18 | 4 |
| DN65 | 139.7 | 19 | 4 | 145 | 18 | 4 |
| DN80 | 152.4 | 19 | 4 | 160 | 18 | 8 |
| DN100 | 190.5 | 19 | 8 | 180 | 18 | 8 |
| DN125 | 215.9 | 22.2 | 8 | 210 | 18 | 8 |
| DN150 | 241.3 | 22.2 | 8 | 240 | 22 | 8 |
| DN200 | 298.5 | 22.2 | 8 | 295 | 22 | 8 |
| DN250 | 362 | 25.4 | 12 | 350 | 22 | 12 |
| DN300 | 431.8 | 25.4 | 12 | 400 | 22 | 12 |
| DN350 | 476.3 | 29 | 12 | 460 | 22 | 16 |
| DN400 | 539.8 | 29 | 16 | 515 | 26 | 16 |
| DN450 | 577.9 | 32 | 16 | 565 | 26 | 20 |
| DN500 | 635 | 32 | 20 | 620 | 26 | 20 |
| DN600 | 749.3 | 35 | 20 | 725 | 30 | 20 |
| DN700 | 863.6 | 35 | 28 | 840 | 30 | 24 |
| DN750 | 914.4 | 35 | 28 | - | - | - |
| DN800 | 977.9 | 41.2 | 28 | 950 | 33 | 24 |
| DN900 | 1085.8 | 41.2 | 32 | 1050 | 33 | 24 |
| DN1000 | 1200.2 | 41.2 | 36 | 1160 | 36 | 28 |
All dimensions are in mm
