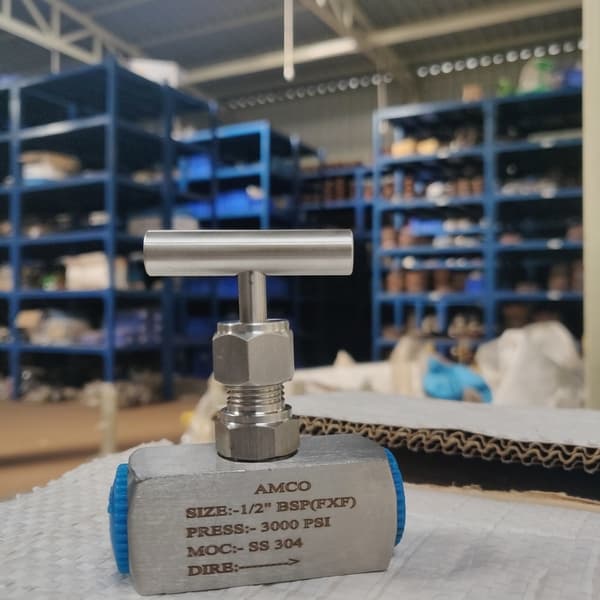

High Pressure Needle Valve
High Pressure Needle Valve
Size :-DN06 - DN50
Material of construction :-CS / SS / Alloy steel / Duplex SS
End connection :-BSPF / NPTF / SW
Pressure rating :-3000 PSI / 6000 PSI
Mode of operation :-Lever
Manufacturing Standard :-Manufacturer Std
Testing Standard :-API 598
Visual Showcase
| HIGH PRESSURE NEEDLE VALVE 3000 psi / 6000 psi | ||
|---|---|---|
| SIZE | FACE TO FACE (3000 psi) | FACE TO FACE (6000 psi) |
| DN8 | 45 | 55 |
| DN10 | 50 | 60 |
| DN15 | 55 | 65 |
| DN20 | 65 | 75 |
| DN25 | 70 | 85 |
| DN32 | 70 | 90 |
| DN40 | 75 | 90 |
| DN50 | 75 | - |
All dimensions are in mm
