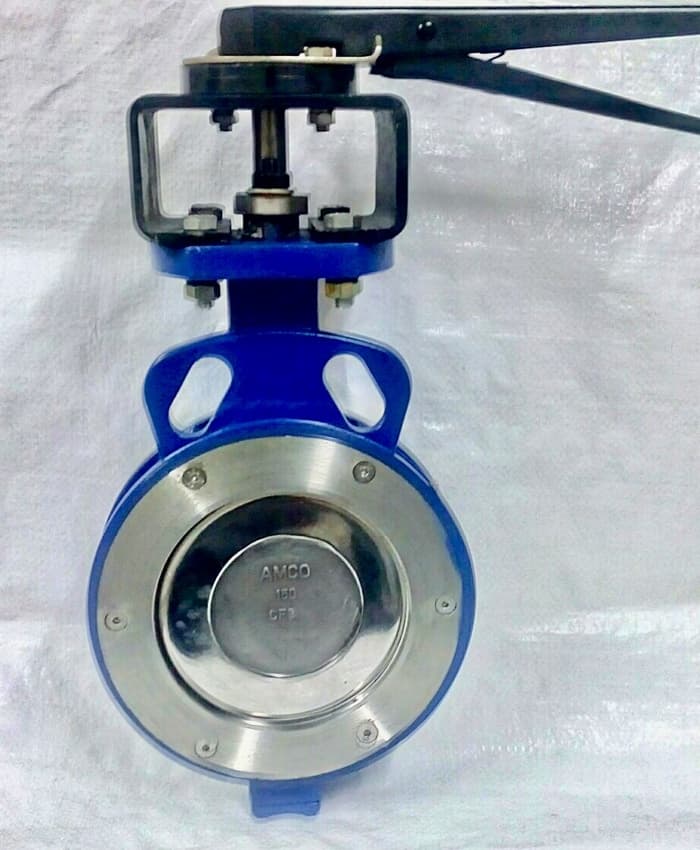

Double Offset Design
Wafer Semi Lugged 150# / 300#
Size :DN40 - DN1000
Material of construction :WCB / CF8 / CF8M / CF3 / CF3M / DSS / SDS / AL. BR
Seat :PTFE / CFT / GFT
End connection :Wafer to suit ANSI & ND flanges
Pressure rating :150# / 300#
Mode of operation :Lever, Gear, Actuator
Manufacturing Standard :API 609 (Cat.A)
Testing Standard :API 598

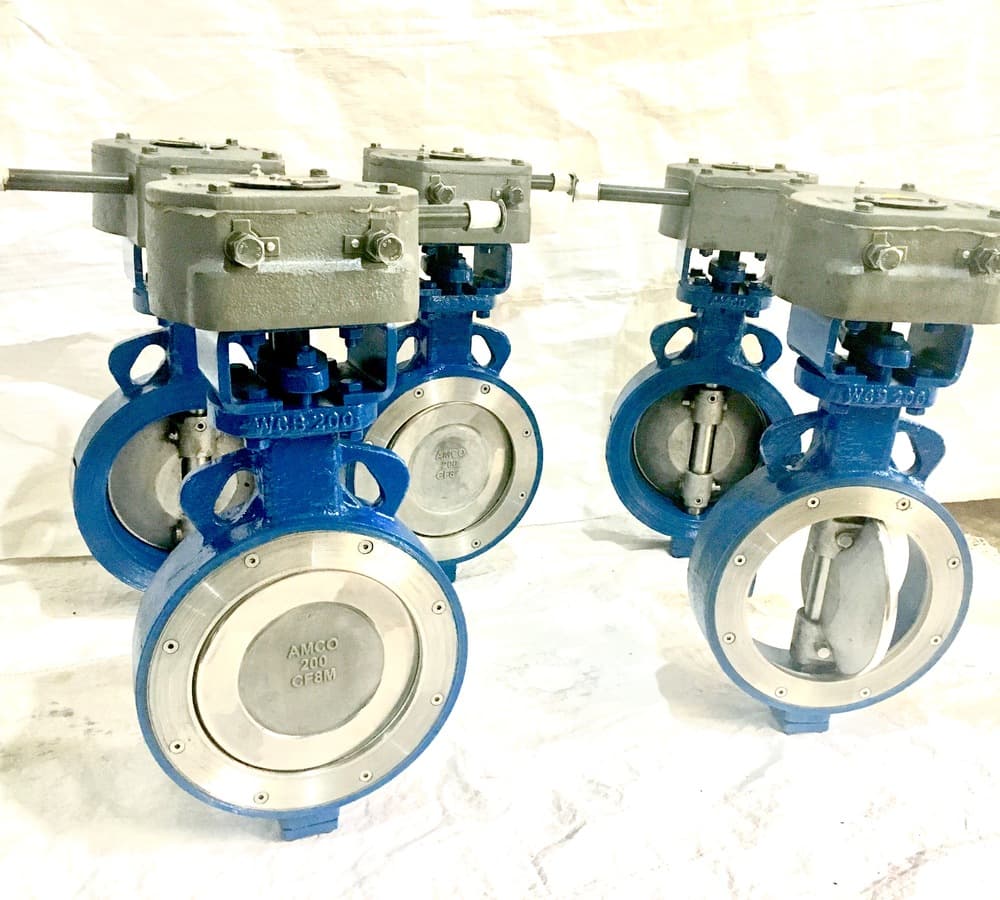

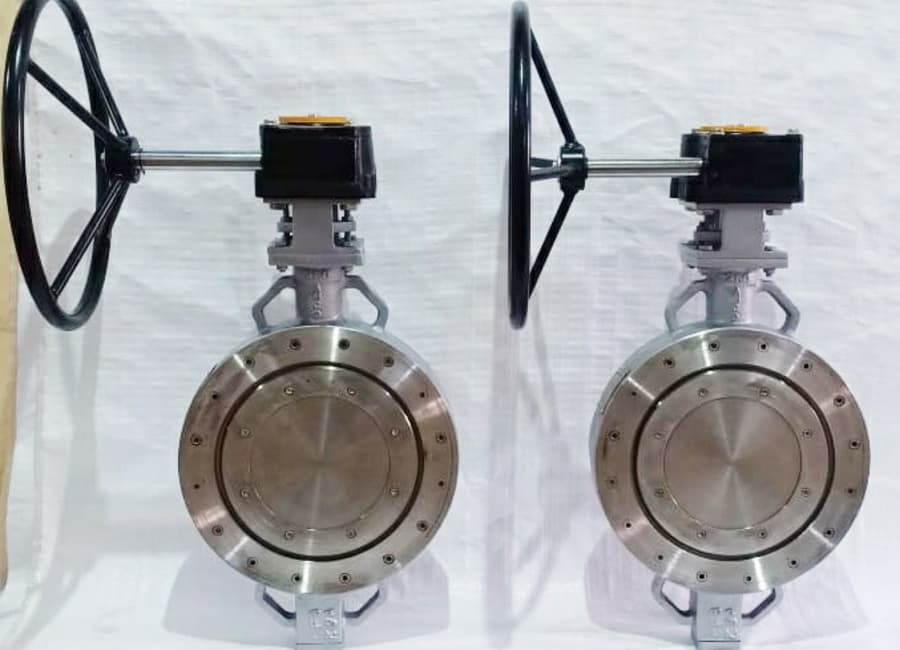

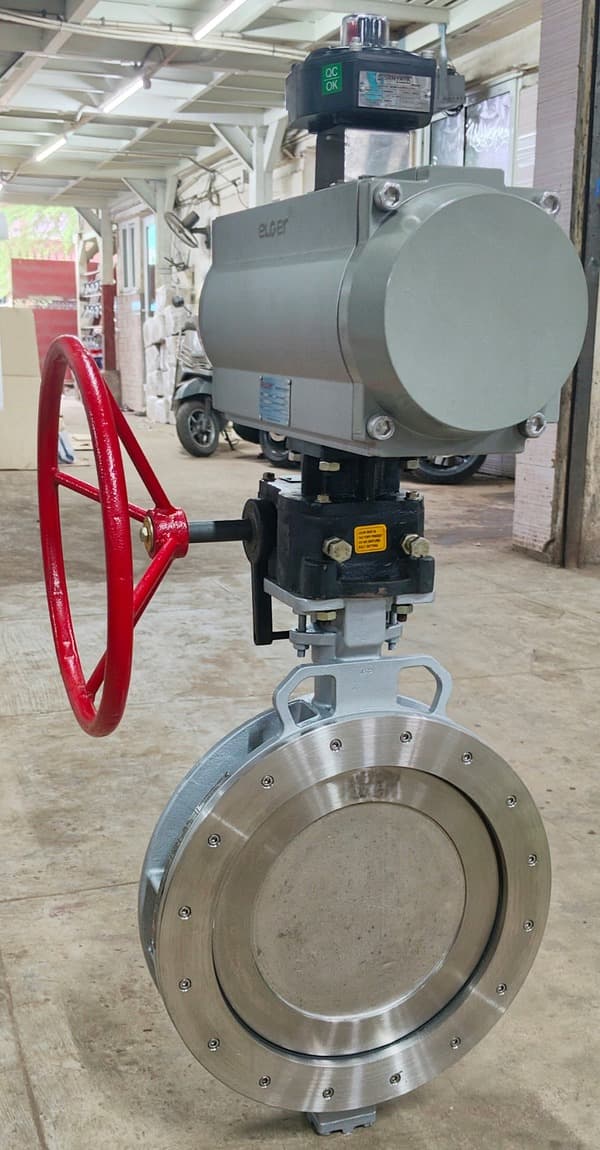

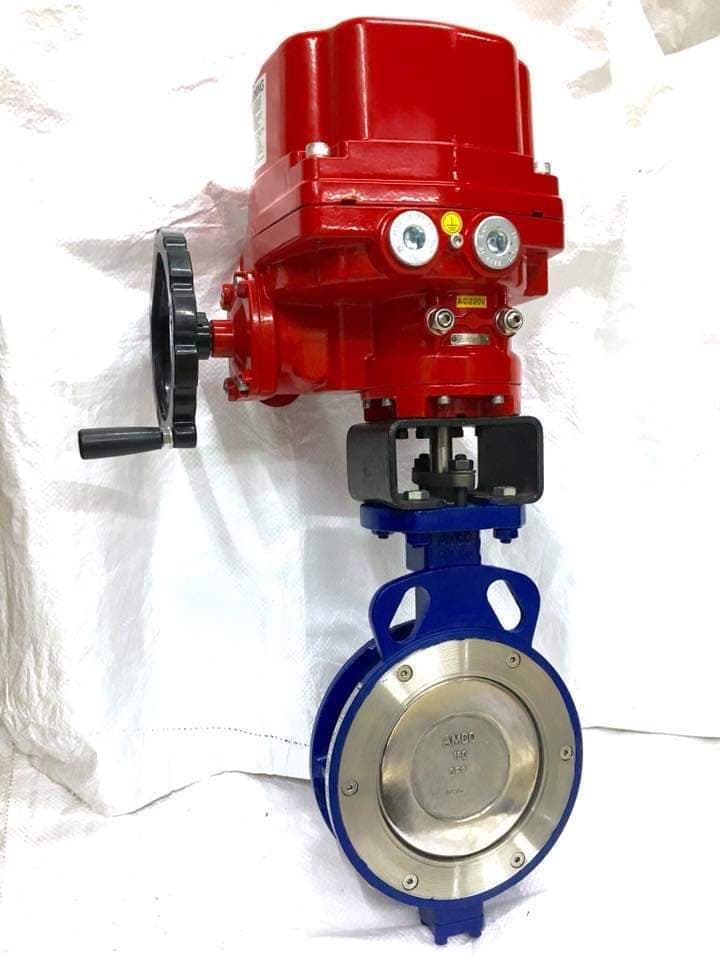

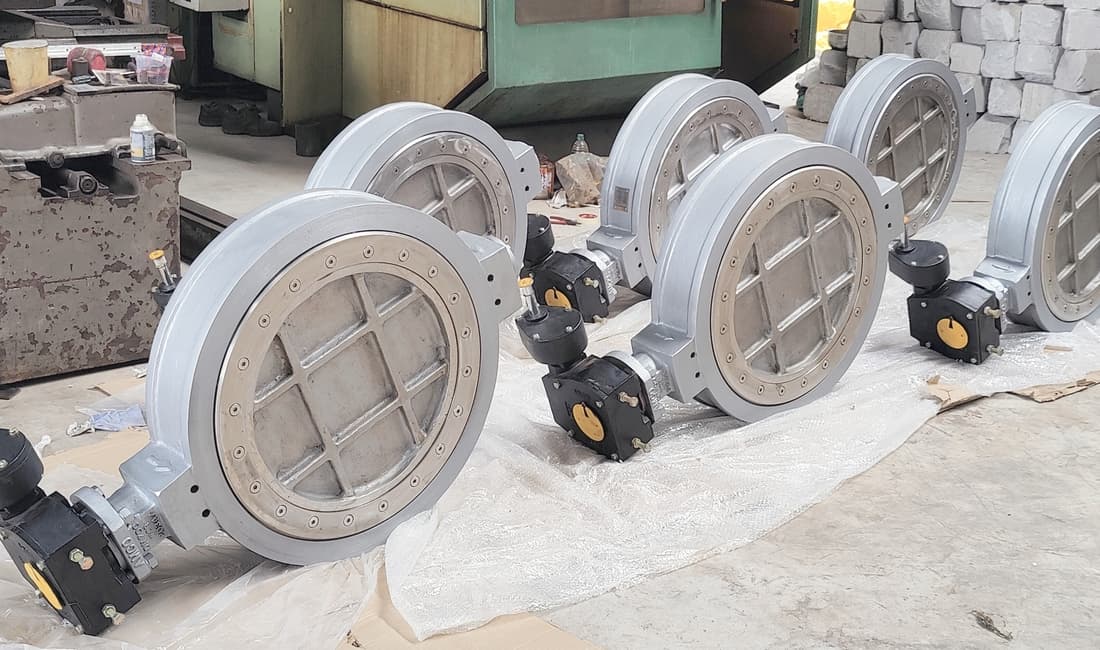

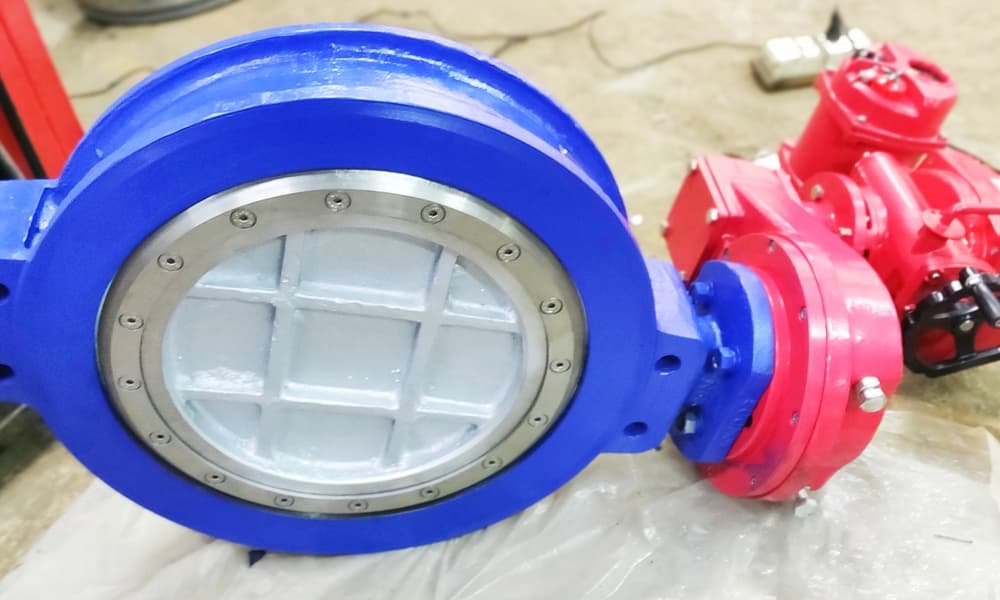

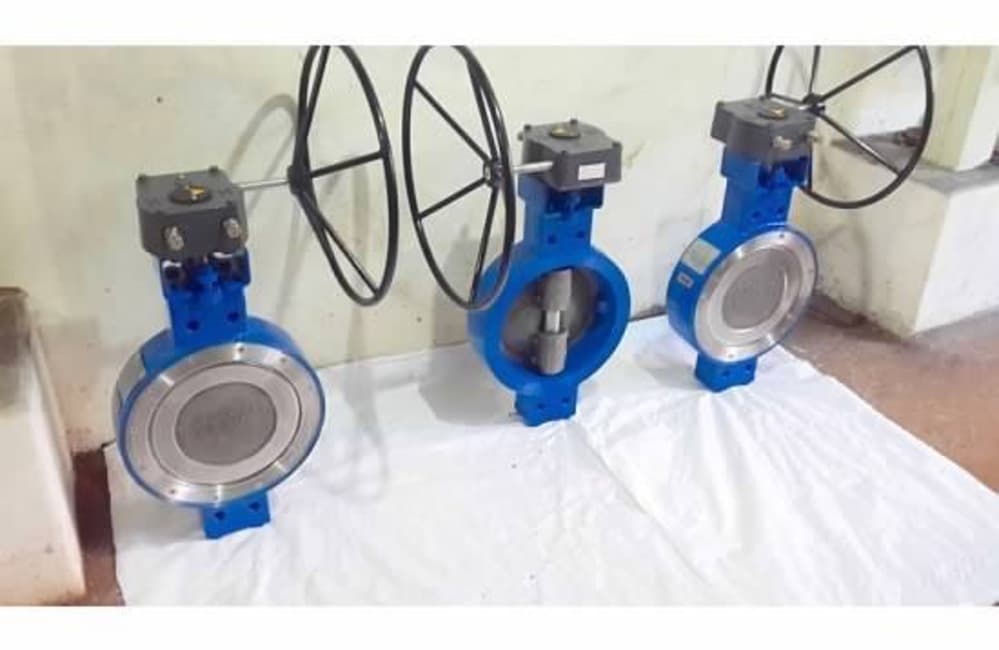

Visual Showcase
| WAFER TYPE BFV TO SUIT 150# FLANGES | |||
|---|---|---|---|
| SIZE | FACE TO FACE | CENTER TO TOP | CENTER TO BOTTOM |
| DN40 | 42 | 85 | 51 |
| DN50 | 45 | 90 | 58 |
| DN65 | 48 | 102 | 63 |
| DN80 | 48 | 120 | 70 |
| DN100 | 54 | 134 | 86 |
| DN125 | 57 | 154 | 105 |
| DN150 | 57 | 170 | 120 |
| DN200 | 63 | 200 | 145 |
| DN250 | 72 | 230 | 175 |
| DN300 | 83 | 270 | 215 |
| DN350 | 92 | 320 | 240 |
| DN400 | 102 | 365 | 280 |
| DN450 | 114 | 375 | 305 |
| DN500 | 127 | 410 | 340 |
| DN600 | 154 | 634 | 438 |
| DN700 | 165 | 730 | 500 |
| DN750 | 190 | 720 | 540 |
| DN800 | 190 | 781 | 560 |
| DN900 | 203 | 860 | 650 |
| DN1000 | 251 | 990 | 732 |
All dimensions are in mm
| WAFER TYPE BFV TO SUIT 300# FLANGES | |||
|---|---|---|---|
| SIZE | FACE TO FACE | CENTER TO TOP | CENTER TO BOTTOM |
| DN40 | - | - | - |
| DN50 | 43 | 133 | 86 |
| DN65 | 48 | 146 | 108 |
| DN80 | 48 | 158 | 109 |
| DN100 | 54 | 172 | 123 |
| DN125 | 59 | 203 | 139 |
| DN150 | 59 | 220 | 163 |
| DN200 | 73 | 278 | 200 |
| DN250 | 83 | 300 | 230 |
| DN300 | 92 | 341 | 267 |
| DN350 | 117 | 457 | 315 |
| DN400 | 133 | 528 | 365 |
| DN450 | 149 | 591 | 383 |
| DN500 | 159 | 602 | 436 |
| DN600 | 181 | 795 | 504 |
All dimensions are in mm
| SIZE | TO SUIT 150# FLANGES | TO SUIT PN10# FLANGES | ||||
|---|---|---|---|---|---|---|
| PCD | HOLE DIA | NO. OF HOLES | PCD | HOLE DIA | NO. OF HOLES | |
| DN40 | 98.4 | 16 | 4 | 110 | 18 | 4 |
| DN50 | 120.7 | 19 | 4 | 125 | 18 | 4 |
| DN65 | 139.7 | 19 | 4 | 145 | 18 | 4 |
| DN80 | 152.4 | 19 | 4 | 160 | 18 | 8 |
| DN100 | 190.5 | 19 | 8 | 180 | 18 | 8 |
| DN125 | 215.9 | 22.2 | 8 | 210 | 18 | 8 |
| DN150 | 241.3 | 22.2 | 8 | 240 | 22 | 8 |
| DN200 | 298.5 | 22.2 | 8 | 295 | 22 | 8 |
| DN250 | 362.0 | 25.4 | 12 | 350 | 22 | 12 |
| DN300 | 431.8 | 25.4 | 12 | 400 | 22 | 12 |
| DN350 | 476.3 | 29 | 12 | 460 | 22 | 16 |
| DN400 | 539.8 | 29 | 16 | 515 | 26 | 16 |
| DN450 | 577.9 | 32 | 16 | 565 | 26 | 20 |
| DN500 | 635.0 | 32 | 20 | 620 | 26 | 20 |
| DN600 | 749.3 | 35 | 20 | 725 | 30 | 20 |
| DN700 | 863.6 | 35 | 28 | 840 | 30 | 24 |
| DN750 | 914.4 | 35 | 28 | - | - | - |
| DN800 | 977.9 | 41.2 | 28 | 950 | 33 | 24 |
| DN900 | 1085.8 | 41.2 | 32 | 1050 | 33 | 24 |
| DN1000 | 1200.2 | 41.2 | 36 | 1160 | 36 | 28 |
All dimensions are in mm
| SIZE | TO SUIT PN16# FLANGES | TO SUIT 300# FLANGES | ||||
|---|---|---|---|---|---|---|
| PCD | HOLE DIA | NO. OF HOLES | PCD | HOLE DIA | NO. OF HOLES | |
| DN40 | 110 | 18 | 4 | - | - | - |
| DN50 | 125 | 18 | 4 | 127 | 19 | 8 |
| DN65 | 145 | 18 | 4 | 149.2 | 22.2 | 8 |
| DN80 | 160 | 18 | 8 | 168.3 | 22.2 | 8 |
| DN100 | 180 | 18 | 8 | 200 | 22.2 | 8 |
| DN125 | 210 | 18 | 8 | 235 | 22.2 | 8 |
| DN150 | 240 | 22 | 8 | 269.9 | 22.2 | 12 |
| DN200 | 295 | 22 | 12 | 330.2 | 25.4 | 12 |
| DN250 | 355 | 26 | 12 | 387.4 | 29 | 16 |
| DN300 | 410 | 26 | 12 | 450.8 | 32 | 16 |
| DN350 | 470 | 26 | 16 | 514.4 | 32 | 20 |
| DN400 | 525 | 30 | 16 | 571.5 | 35 | 20 |
| DN450 | 585 | 30 | 20 | 628.6 | 35 | 24 |
| DN500 | 650 | 33 | 20 | 685.8 | 35 | 24 |
| DN600 | 770 | 36 | 20 | 812.8 | 41 | 24 |
| DN700 | 840 | 36 | 24 | - | - | - |
| DN750 | - | - | - | - | - | - |
| DN800 | 950 | 39 | 24 | - | - | - |
| DN900 | 1050 | 39 | 28 | - | - | - |
| DN1000 | 1170 | 42 | 28 | - | - | - |
All dimensions are in mm
