Screwed Design

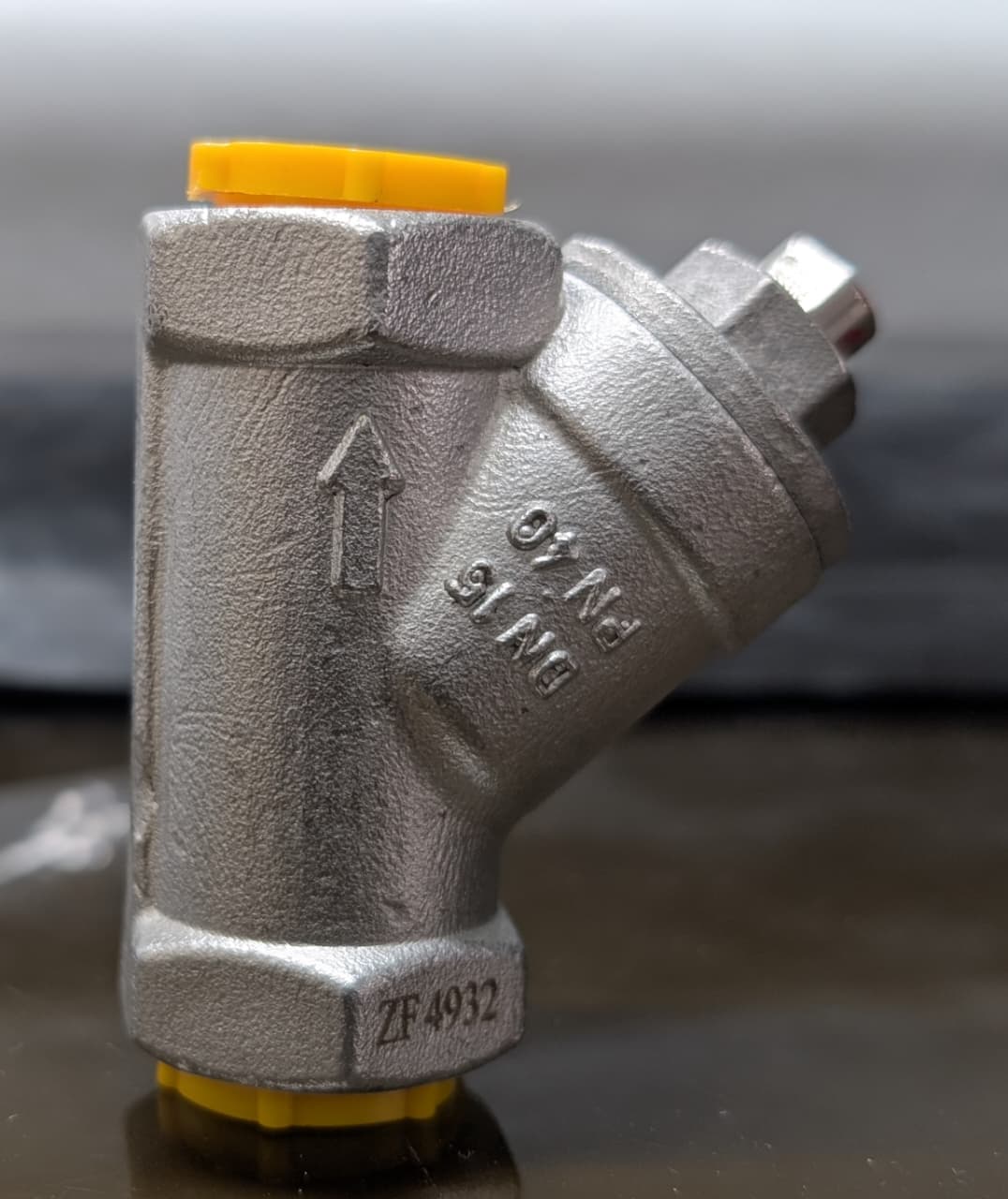

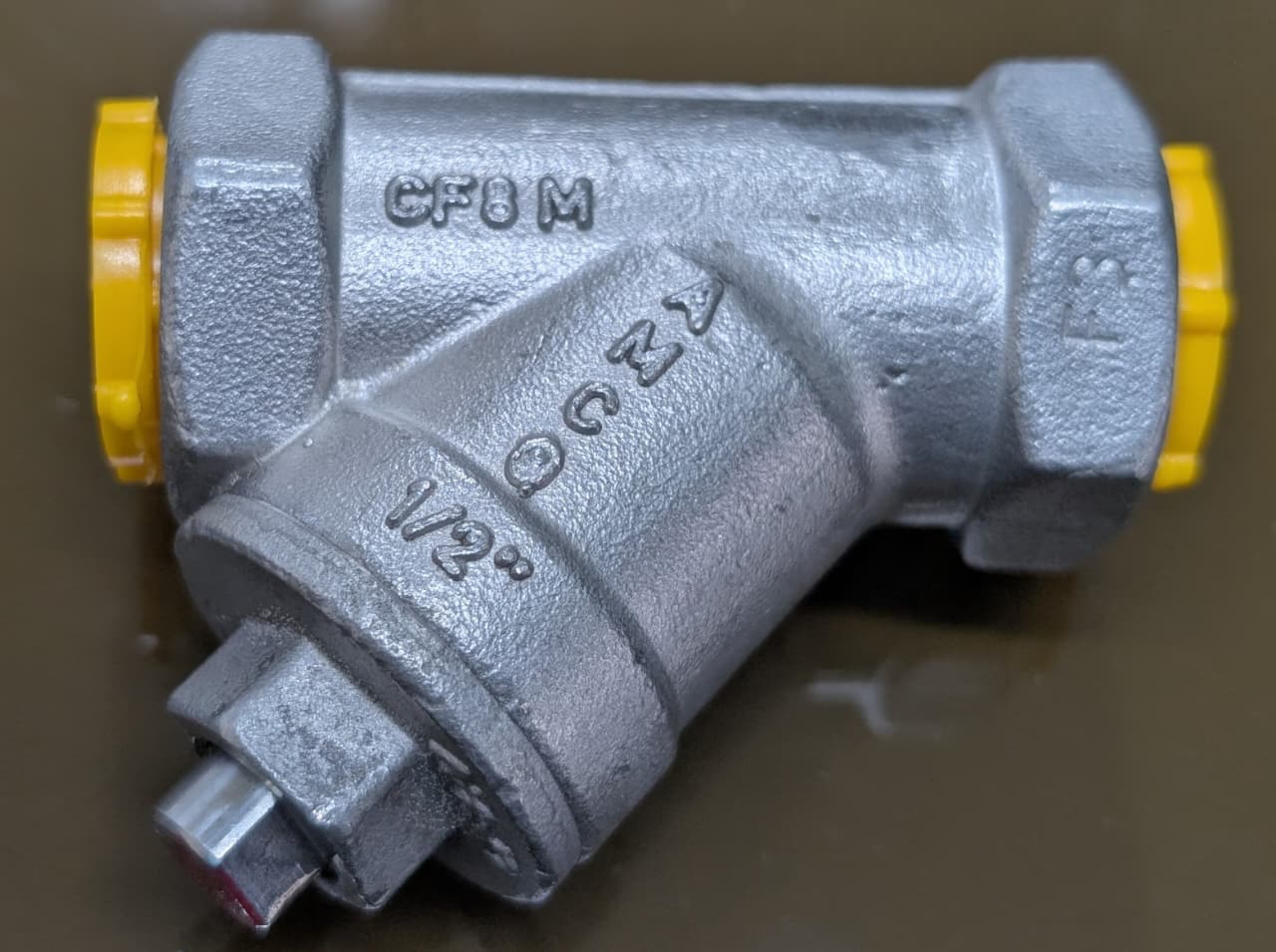

Y Strainer - Screwed
Size :DN15 - DN50
Material of construction
(Bill of material) :CF8 / CF8M / CF3 / CF3M / DUPLEX / SUPER DUPLEX / ALLOY STEEL
(Bill of material) :CF8 / CF8M / CF3 / CF3M / DUPLEX / SUPER DUPLEX / ALLOY STEEL
Mesh :All sizes available
End connection :Screwed
Pressure rating :PN40
Manufacturing Standard :ASME B16.34
Testing Standard :API 598
Visual Showcase
| Y STRAINER SCREWED PN40 | |||
|---|---|---|---|
| SIZE | FACE TO FACE | BORE | HEIGHT |
| DN15 | 61 | 15 | 37 |
| DN20 | 70 | 20 | 41 |
| DN25 | 86 | 25 | 47 |
| DN32 | 100 | 32 | 54 |
| DN40 | 111 | 38 | 62 |
| DN50 | 138 | 51 | 76 |
All dimensions are in mm
