Small Bore Forged
Small Bore Forged IBR & Non IBR Globe Valve
Size :DN15 - DN50
Material of construction
(BILL OF MATERIAL) :A105 / F304/L / F316/L / F11 / F22
(BILL OF MATERIAL) :A105 / F304/L / F316/L / F11 / F22
End connection :Screwed / Socket weld / CB / BW
Pressure rating :150#, 300#, 600#, 800#, 1500#, 2500#
Mode of operation :Wheel
Manufacturing Standard :API 602
Testing Standard :API 598

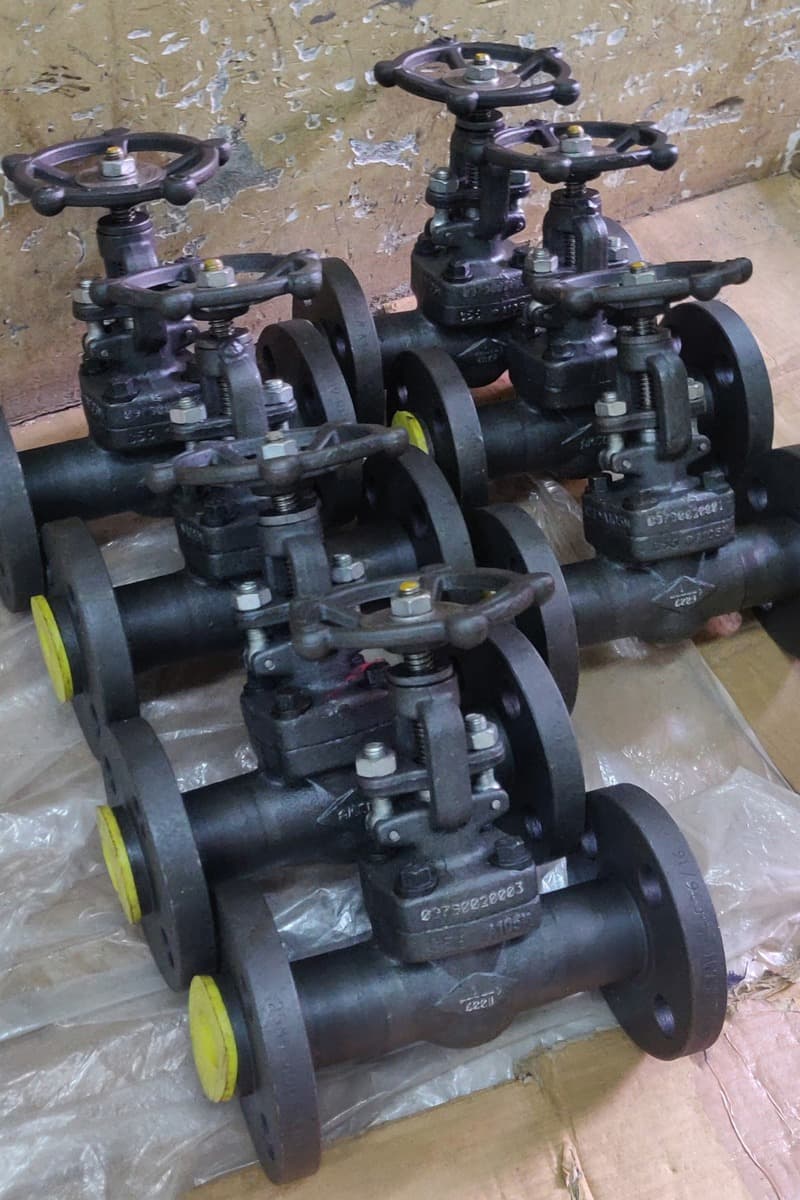

Visual Showcase
Flanged Design Specifications
| A105 / F304L / F316L GLOBE VALVE FLANGED 150# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | OUTER DIA | HOLE DIA X NO. OF HOLES | PCD | HEIGHT (OPEN/CLOSE) | WHEEL DIA |
| DN15 | 108 | 90 | 16 X 4 | 60.3 | 159 / 143 | 86 |
| DN20 | 117 | 100 | 16 X 4 | 69.9 | 162 / 146 | 86 |
| DN25 | 127 | 110 | 16 X 4 | 79.4 | 191 / 171 | 116 |
| DN32 | 140 | 115 | 16 X 4 | 88.9 | 228 / 199 | 150 |
| DN40 | 165 | 125 | 16 X 4 | 98.4 | 228 / 199 | 150 |
| DN50 | 203 | 150 | 19 X 4 | 120.7 | 265 / 236 | 150 |
All dimensions are in mm
| A105 / F304L / F316L GLOBE VALVE FLANGED 300# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | OUTER DIA | HOLE DIA X NO. OF HOLES | PCD | HEIGHT (OPEN/CLOSE) | WHEEL DIA |
| DN15 | 152 | 95 | 16 X 4 | 66.7 | 159 / 143 | 86 |
| DN20 | 178 | 115 | 19 X 4 | 82.6 | 162 / 146 | 86 |
| DN25 | 203 | 125 | 19 X 4 | 88.9 | 191 / 171 | 116 |
| DN32 | 216 | 135 | 19 X 4 | 98.4 | 228 / 199 | 150 |
| DN40 | 229 | 155 | 22.2 X 4 | 114.3 | 228 / 199 | 150 |
| DN50 | 267 | 165 | 19 X 8 | 127 | 265 / 236 | 150 |
All dimensions are in mm
| A105 / F304L / F316L GLOBE VALVE FLANGED 600# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | OUTER DIA | HOLE DIA X NO. OF HOLES | PCD | HEIGHT (OPEN/CLOSE) | WHEEL DIA |
| DN15 | 165 | 95 | 16 X 4 | 66.7 | 159 / 143 | 86 |
| DN20 | 190 | 115 | 19 X 4 | 82.6 | 162 / 146 | 86 |
| DN25 | 216 | 125 | 19 X 4 | 88.9 | 191 / 171 | 116 |
| DN32 | 229 | 135 | 19 X 4 | 98.4 | 228 / 199 | 150 |
| DN40 | 241 | 155 | 22.2 X 4 | 114.3 | 228 / 199 | 150 |
| DN50 | 292 | 165 | 19 X 8 | 127 | 265 / 236 | 150 |
All dimensions are in mm
SW, SE & BW Design Specifications
| A105 / F304L / F316L GLOBE VALVE SW, SE & BW 800# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | BORE | SOCKETWELD BORE | HEIGHT (OPEN) | HEIGHT (CLOSE) | WHEEL DIA |
| DN15 | 73 | 9.5 | 21.8 | 159 | 143 | 86 |
| DN20 | 80 | 12.7 | 27.2 | 162 | 146 | 86 |
| DN25 | 100 | 17.5 | 33.9 | 191 | 171 | 116 |
| DN32 | 145 | 23.8 | 42.7 | 228 | 199 | 150 |
| DN40 | 145 | 28.6 | 48.8 | 228 | 199 | 150 |
| DN50 | 160 | 36.5 | 61.2 | 265 | 236 | 150 |
All dimensions are in mm
| A105 / F304L / F316L GLOBE VALVE SW, SE & BW 1500# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | BORE | SOCKETWELD BORE | HEIGHT (OPEN) | HEIGHT (CLOSE) | WHEEL DIA |
| DN15 | 80 | 8.5 | 21.8 | 160 | 148 | 86 |
| DN20 | 100 | 9.5 | 27.2 | 174 | 187 | 116 |
| DN25 | 145 | 14.5 | 33.9 | 224 | 204 | 150 |
| DN32 | 145 | 20.5 | 42.7 | 224 | 204 | 150 |
| DN40 | 160 | 25.5 | 48.8 | 239 | 261 | 150 |
| DN50 | 172 | 27.5 | 61.2 | 318 | 290 | 225 |
All dimensions are in mm
| A105 / F304L / F316L GLOBE VALVE SW, SE & BW 2500# | ||||||
|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | BORE | SOCKETWELD BORE | HEIGHT (OPEN) | HEIGHT (CLOSE) | WHEEL DIA |
| DN15 | 100 | 7.0 | 21.8 | 178 | 162 | 116 |
| DN20 | 145 | 12.5 | 27.2 | 227 | 207 | 150 |
| DN25 | 160 | 15.5 | 33.9 | 256 | 224 | 150 |
| DN32 | 172 | 21.5 | 42.7 | 303 | 263 | 225 |
| DN40 | 172 | 26.5 | 48.8 | 303 | 263 | 225 |
| DN50 | - | - | - | - | - | - |
All dimensions are in mm
