Floating Design

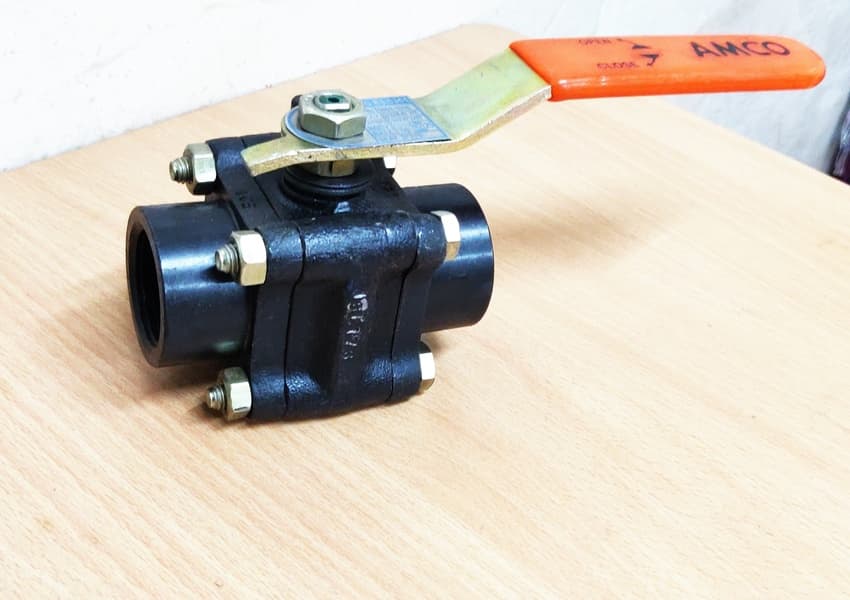

3 Piece Design Screwed / Socket weld 600# & 800# & 1500#
Size :DN6 - DN50
Material of construction :A105 / F304/L / F316/L / CF8 / CF8M / CF3 / CF3M
End connection :BSPF / NPTF / SW / BW
Pressure rating :600# / 800# / 1500#
Mode of operation :Lever, Actuator
Manufacturing Standard :ISO 17292 / API 6D / API 608
Testing Standard :ISO 5208 / ISO 10497 / API 607

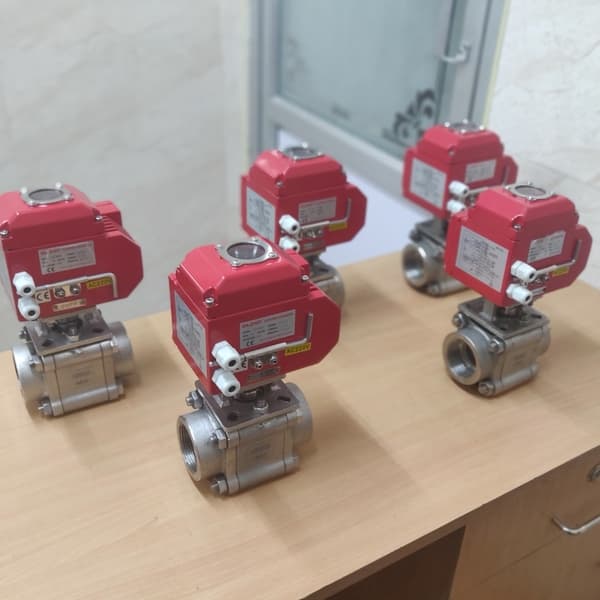

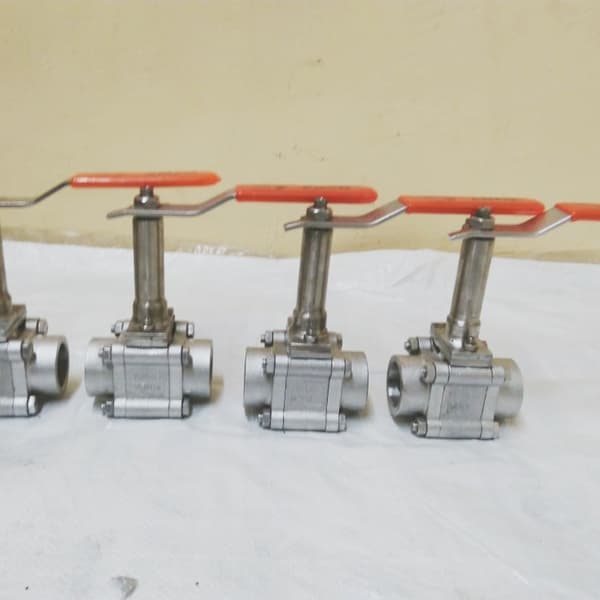

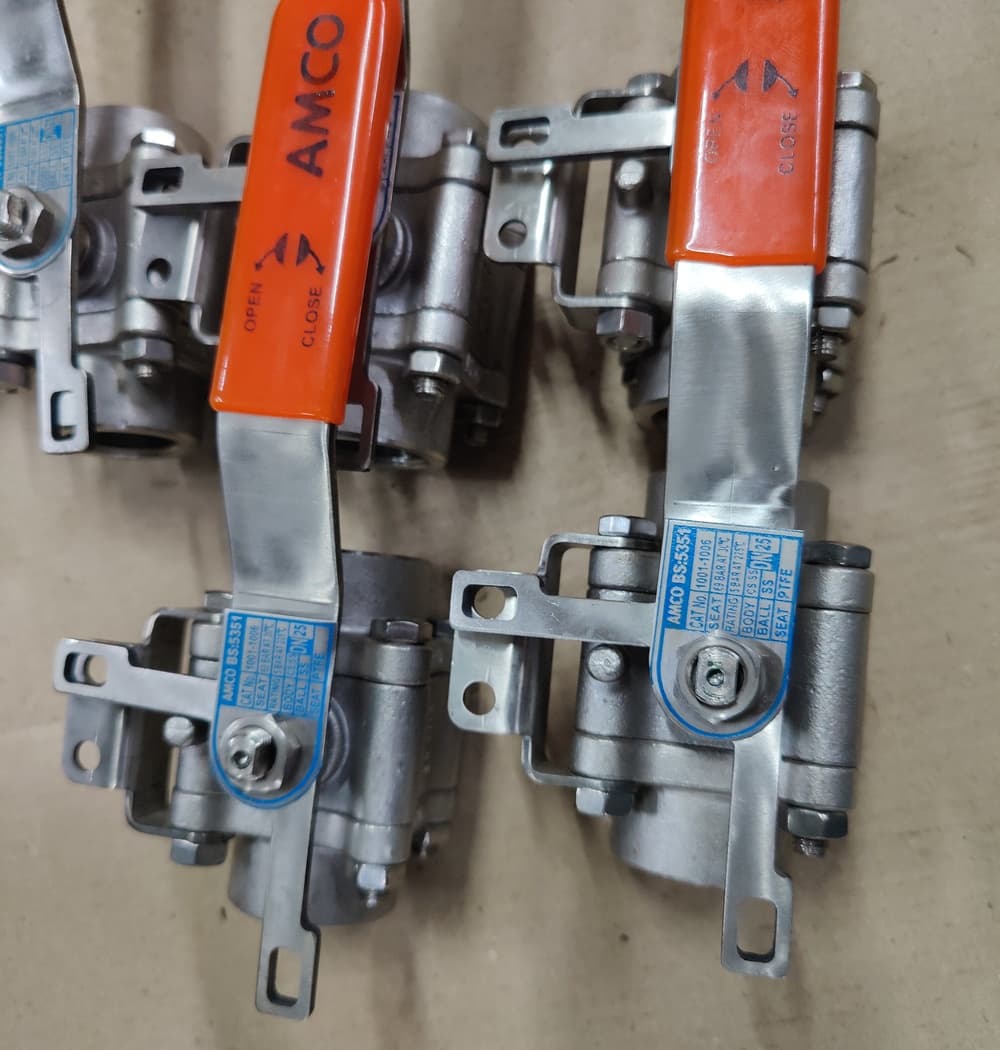

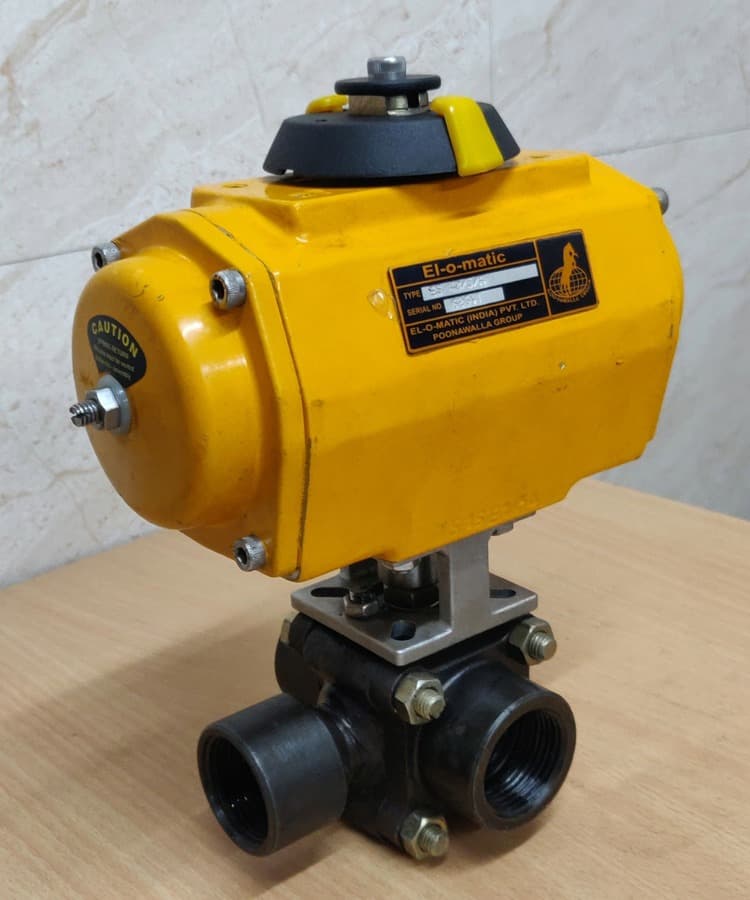

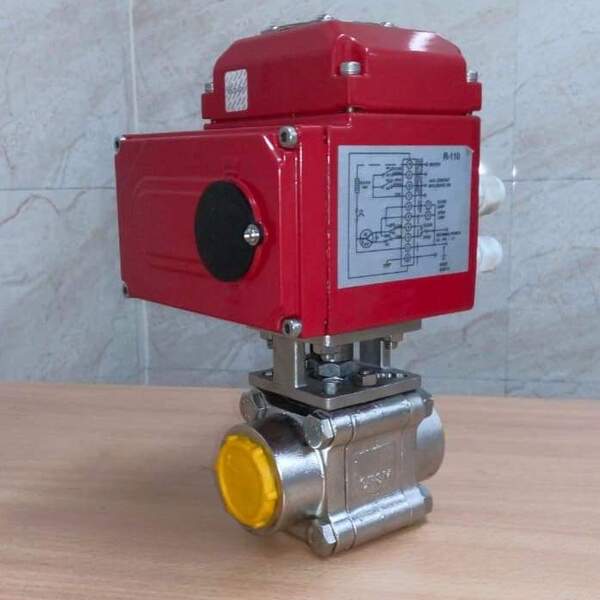

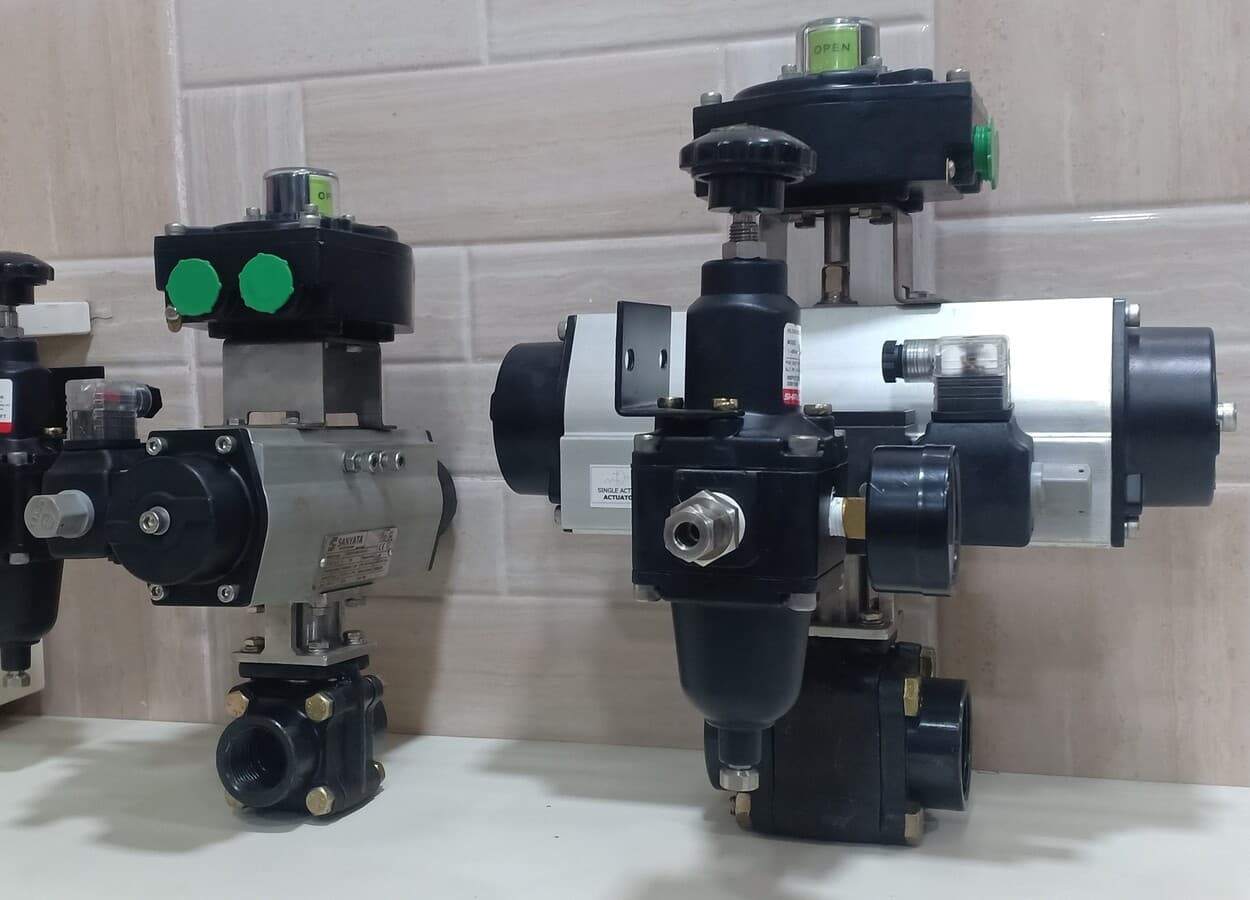

Visual Showcase
| 3PC DESIGN SCREWED / SOCKETWELD 600# / 800# / 1500# | ||||||
|---|---|---|---|---|---|---|
| REGULAR BORE | FULL BORE | |||||
| SIZE | FACE TO FACE | LEVER LENGTH | HEIGHT | FACE TO FACE | LEVER LENGTH | HEIGHT |
| DN15 | 68 | 128 | 38 | 68 | 128 | 38 |
| DN20 | 67 | 128 | 39 | 85 | 151 | 53 |
| DN25 | 85 | 151 | 53 | 95 | 165 | 56 |
| DN32 | 95 | 165 | 56 | 110 | 202 | 70 |
| DN40 | 110 | 202 | 70 | 120 | 202 | 74 |
| DN50 | 120 | 202 | 74 | 158 | 280 | 84 |
All dimensions are in mm
